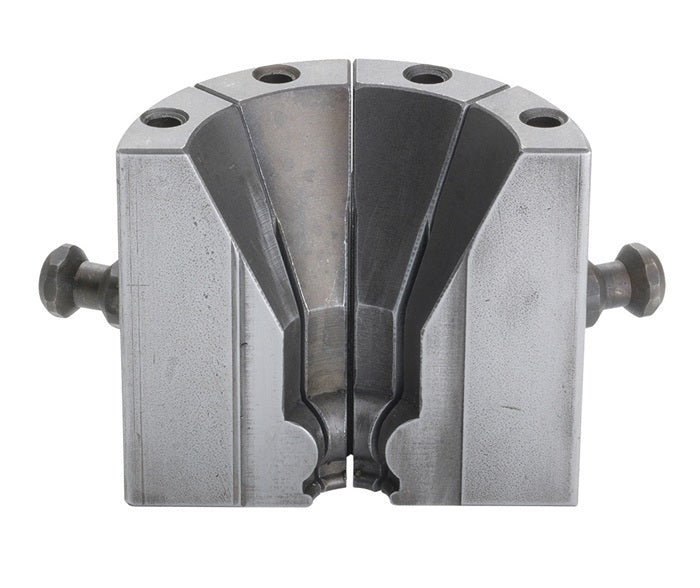

KCDV230-126 KuriCrimp™ by Kuriyama | V230 Series | Die for High Volume Crimper | 126.0 - 131.0 mm Crimp Range

KCDV230-126 KuriCrimp™ by Kuriyama | V230 Series | Die for High Volume Crimper | 126.0 - 131.0 mm Crimp Range

Save $100.25 Save $100.25
$902.27
$902.27 - $902.27
$902.27
$802.02
$802.02 - $802.02
$802.02

Kuriyama of America Inc.
KuriCrimp™ | V230 Series | Die for High Volume Crimpers
Specifications for Variant SKU: KCDV230-126 Kuriyama
Brand: KuriCrimp
Series: V230 Series
Compatible with the following Series: KC4-V250 Series
Dies | V230 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDV230-103 103.0 - 106.0mm 103mm 145mm 79.3 lbs
KCDV230-106 106.0 - 111.0mm 106mm 145mm 77.0 lbs
KCDV230-111 111.0 - 116.0mm 111mm 145mm 77.0 lbs
KCDV230-116 116.0 - 121.0mm 116mm 145mm 77.0 lbs
KCDV230-121 121.0 - 126.0mm 121mm 145mm 83.7 lbs
KCDV230-126 126.0 - 131.0mm 126mm 145mm 70.5 lbs
KCDV230-131 131.0 - 136.0mm 131mm 145mm 70.5 lbs
KCDV230-136 136.0 - 146.0mm 136mm 145mm 77.0 lbs
KCDV230-146 146.0 -156.0mm 146mm 145mm 77.0 lbs
KCDV230-156 156.0 - 166.0mm 156mm 145mm 74.9 lbs
KCDV230-166 166.0 - 178.0mm 166mm 145mm 79.3 lbs
KCDV230-178 178.0 - 190.0mm 178mm 145mm 77.0 lbs
KCDV230-190 190.0 - 200.0mm 190mm 145mm 77.0 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
