KCHAR1.5MM KuriCrimp™ by Kuriyama | KCHAR Series | Character Block for Marking Dies | 12 and 14mm Die Size | 1.5mm Character Height

Name: KCHAR1.5MM KuriCrimp™ by Kuriyama | KCHAR Series | Character Block for Marking Dies | 12 and 14mm Die Size | 1.5mm Character Height
Brand: Kuriyama
SKU: KCHAR1.5MM Kuriyama
Price: 66.31 USD
Availability: InStock

Save $8.29

$74.60

$74.60 - $74.60

$74.60

$66.31

$66.31 - $66.31

$66.31

Kuriyama of America Inc.
KuriCrimp™ | KCHAR Series | Character Blocks for Marking Dies

Available in a wide variety of letters, numbers and symbols, character blocks can be arranged in a various ways within the hollowed out marking die segment.

For use with Standard Volume Crimpers.

Quantity

Specifications for Variant SKU: KCHAR1.5MM Kuriyama
Brand:	KuriCrimp
Series:	KCHAR Series

About Marking Dies:

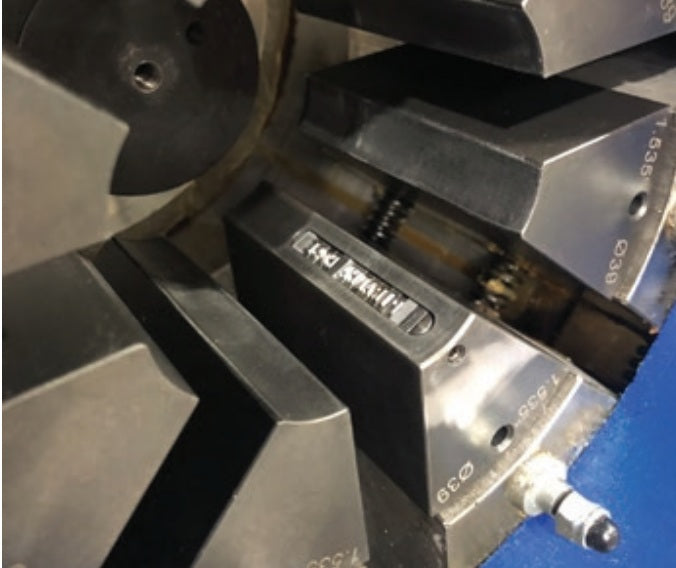

Imprints your own custom message, logo, or date code on the ferrule during the crimping process. Purchase your own custom set of letters, numbers, symbols and spacer blocks; which can be arranged and rearranged in any manner to create various branding messages or date codes for hose traceability. Used in conjunction with standard die set for that size, and replaces one of the eight standard die segments with marking die segment. Marking varies in height from 1.5 mm to 4 mm, and in length from 10 to 15 characters, depending on die size. For use with KC1-H130, KC3-H130, KC1-H135, KC3-H135, KC3-H144 and KC3-H170 Series Crimpers.

Part Number	Die Sizes (mm)	Character Height (mm)
KCHAR1.5MM	12 & 14	1.5
KCHAR2MM	16, 19, 22, 25 & 29	2.0
KCHAR3MM	34, 38, 42, 46, 50, 54, 58, 63, 69 & 73	3.0
KCHAR4MM	103, 106, 111, 116, 121, 126 & 131	4.0

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
