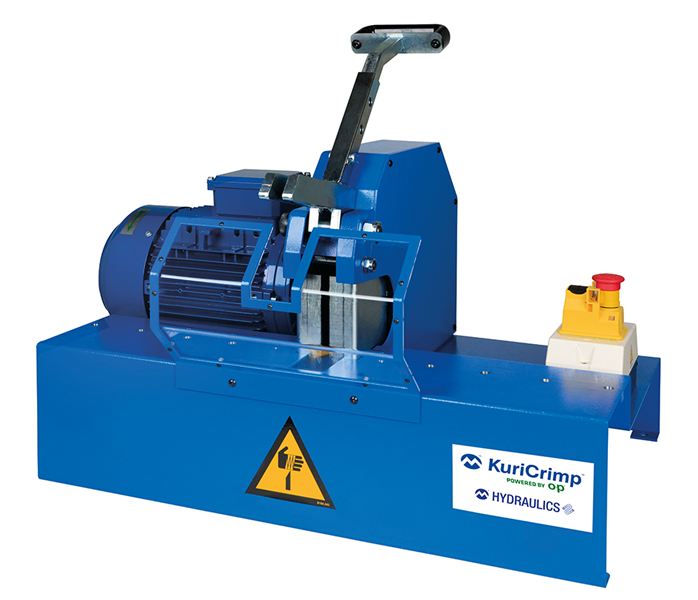

KCS-TF3/E-230/3 KuriCrimp™ by Kuriyama | KCS-TF2/E Series | Hose Saw | 4 HP (230 V) 3 PH Motor | For Flexible Hydraulic Hoses Up To 2" Six Spirals

KCS-TF3/E-230/3 KuriCrimp™ by Kuriyama | KCS-TF2/E Series | Hose Saw | 4 HP (230 V) 3 PH Motor | For Flexible Hydraulic Hoses Up To 2" Six Spirals

Save $576.88 Save $576.88
$5,191.89
$5,191.89 - $5,191.89
$5,191.89
$4,615.01
$4,615.01 - $4,615.01
$4,615.01

Kuriyama of America Inc.
KuriSaws™ | KCS-TF2/E Series | Hose Saw

For Flexible Hydraulic Hoses Up To 2" Six Spirals.
Specifications for Variant SKU: KCS-TF3/E-230/3 Kuriyama
Brand: KuriCrimp
Series: KCS-TF2/E Series
Features:
  • Weight: 130 (lbs).
  • Ø 350 mm serrated blade.
  • Manually operated.
  • Recessed blade and guards for the operator's safety.
Hose Capacity:
  • Hose Capacity for 1 - 2 Wire: 2 in
  • Hose Capacity for 4 Spiral: 2 in
  • Hose Capacity for 6 Spiral: 2 in
  • Hose Capacity for Industrial: 2-1/2 in
  • Max. Opening: 85 mm
  • Motor Strength: 4 hp
Cutter Size:
  • Length: 30.0 in
  • Width: 20.9 in
  • Height: 20.1 in
  • Weight: 130 lb
  • Blade Diameter: 350 mm
Included Accessories:
  • Recessed Blade
  • Ventilation Port (Separate suction device required for fume extraction)
  • Serrated Blade (CAUTION: The included Serrated Blade is not recommended for use with hoses with a steel cover and/or containing steel helix)
Part Number Capacity Motor Weight
KCS-TF3/E-230/3 For Flexible Hydraulic Hoses Up To 2" Six Spirals 4 HP (230 V) 3 PH 130 (lbs)
