KH-STOPFUJIC34OP Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Nipple Retention System Open 24° Cone Connectors (JIC) | Large Cutting Plate | M6 Size | 1.339" ID | 17.717" Length | Pack of 10

Save $201.81

$706.34

$706.34 - $706.34

$706.34

$504.53

$504.53 - $504.53

$504.53

Kuriyama of America Inc.

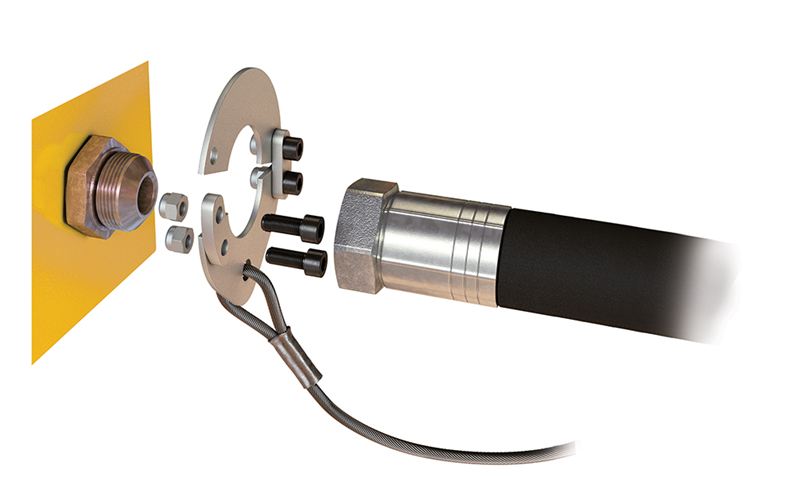

Stopflex | Hydraulic Hose Safety Retention System | KH-STOPFUJIC-OP | Nipple Retention System Open 24° Cone Connectors (JIC)

The Stopflex system is designed to safely dissipate pressure during a hose failure, and protect those in the vicinity from being struck by hose whip.

This Stopflex retention system is designed for JIC fittings. A highly engineered retention system that can be applied to hoses already installed.

Package Quantity: 10 Units

Specifications for Variant SKU: KH-STOPFUJIC34OP Kuriyama
Brand:	Stopflex
Series:	KH-STOPFUJIC-OP Series
Applicable Specs & Approvals:	ISO 4413

About:
Hydraulic hoses contain enormous potential energy while in operation, resulting from their high operating pressures, which are often in the thousands of PSI. During a hose failure this energy becomes kinetic, transforming the hose into a dangerous whip hazard, potentially resulting in serious injury. The Stopflex system is designed to safely dissipate this pressure, and protect those in the vicinity from being struck during a hose failure.
Features:
Stopflex enhances workplace safety and reduces the risk of injury or damage. Effectively contains the dangerous whipping motion of a high-pressure hydraulic hose failure.
Specifications:
Stopflex is rigorously tested and validated to withstand real hydraulic system pressures, making it one of the only retention solutions fully aligned with ISO 4413's safety mandates.


Part Number	Ø M	Ø (in)	SP./TH (in)	L (in)	Maximum Operating Pressure	Cutting Plate
KH-STOPFUJIC115OP	M6	0.453"	0.079"	11.811"	6525 PSI	SMALL
KH-STOPFUJIC132OP	M6	0.520"	0.079"	11.811"	6453 PSI	SMALL
KH-STOPFUJIC148OP	M6	0.583"	0.079"	11.811"	6090 PSI	SMALL
KH-STOPFUJIC195OP	M6	0.768"	0.079"	11.811"	6090 PSI	SMALL
KH-STOPFUJIC228OP	M6	0.898"	0.079"	11.811"	6090 PSI	SMALL
KH-STOPFUJIC275OP	M6	1.083"	0.079"	11.811"	6090 PSI	SMALL
KH-STOPFUJIC307OP	M6	1.209"	0.079"	11.811"	6090 PSI	SMALL
KH-STOPFUJIC34SOP	M6	1.201"	0.098"	17.717"	6090 PSI	LARGE
KH-STOPFUJIC34OP	M6	1.339"	0.098"	17.717"	6090 PSI	LARGE
KH-STOPFUJIC415SOP	M8	1.339"	0.098"	17.717"	6090 PSI	LARGE
KH-STOPFUJIC415OP	M6	1.634"	0.098"	17.717"	6090 PSI	LARGE
KH-STOPFUJIC48SOP	M8	1.890"	0.098"	17.717"	6090 PSI	LARGE
KH-STOPFUJIC48OP	M6	1.890"	0.098"	17.717"	6090 PSI	LARGE
KH-STOPFUJIC64OP	M8	2.520"	0.098"	17.717"	5583 PSI	LARGE
