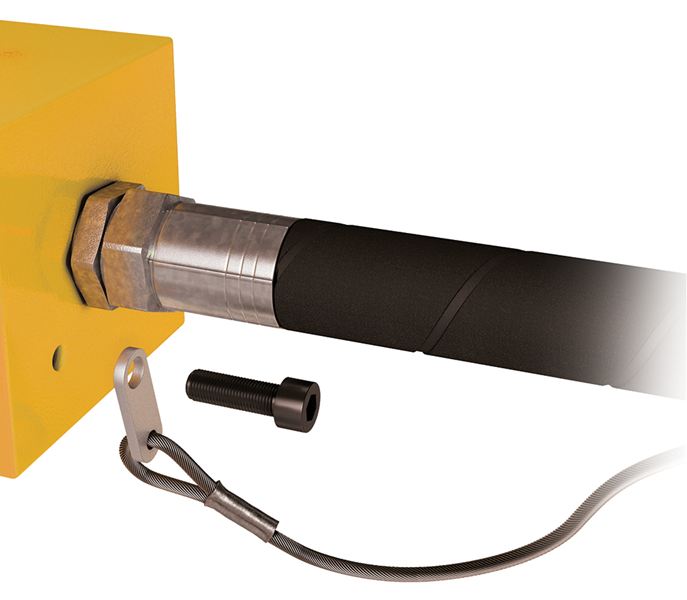

KH-STOPFUVARIES Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for Various Use | Small Cutting Plate | M6 Size | 0.413" ID | 17.717" Length | Pack of 10
KH-STOPFUVARIES Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for Various Use | Small Cutting Plate | M6 Size | 0.413" ID | 17.717" Length | Pack of 10
KH-STOPFUVARIES Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for Various Use | Small Cutting Plate | M6 Size | 0.413" ID | 17.717" Length | Pack of 10

KH-STOPFUVARIES Stopflex by Kuriyama | Hydraulic Hose Safety Retention System | Retention System for Various Use | Small Cutting Plate | M6 Size | 0.413" ID | 17.717" Length | Pack of 10

Save $98.68 Save $98.68
$345.39
$345.39 - $345.39
$345.39
$246.71
$246.71 - $246.71
$246.71

Kuriyama of America Inc.
Stopflex | Hydraulic Hose Safety Retention System | KH-STOPFUVARIE | Nipple Retention System for Various Uses

The Stopflex system is designed to safely dissipate pressure during a hose failure, and protect those in the vicinity from being struck by hose whip.


Package Quantity: 10 Units

Specifications for Variant SKU: KH-STOPFUVARIES Kuriyama
Brand: Stopflex
Series: KH-STOPFUVARIE Series
Applicable Specs & Approvals: ISO 4413
About:

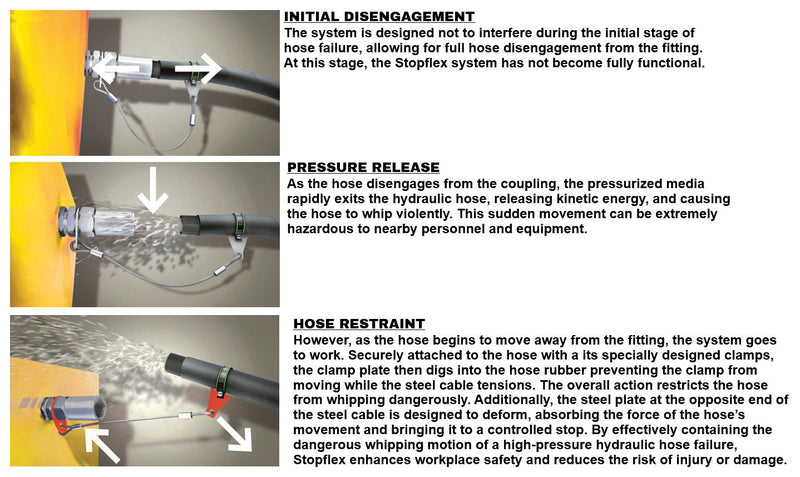

  • Hydraulic hoses contain enormous potential energy while in operation, resulting from their high operating pressures, which are often in the thousands of PSI.
  • During a hose failure this energy becomes kinetic, transforming the hose into a dangerous whip hazard, potentially resulting in serious injury.
  • The Stopflex system is designed to safely dissipate this pressure, and protect those in the vicinity from being struck during a hose failure.
Features:
  • Stopflex enhances workplace safety and reduces the risk of injury or damage.
  • Effectively contains the dangerous whipping motion of a high-pressure hydraulic hose failure.
Specifications:
  • Stopflex is rigorously tested and validated to withstand real hydraulic system pressures, making it one of the only retention solutions fully aligned with ISO 4413's safety mandates.
Part Number Ø M Ø (in) SP./TH (in) L (in) Maximum Operating Pressure Cutting Plate
KH-STOPFUVARIE M8 0.512" 0.157" 17.717" 6090 PSI LARGE
KH-STOPFUVARIES M6 0.413" 0.157" 17.717" 6090 PSI SMALL
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
