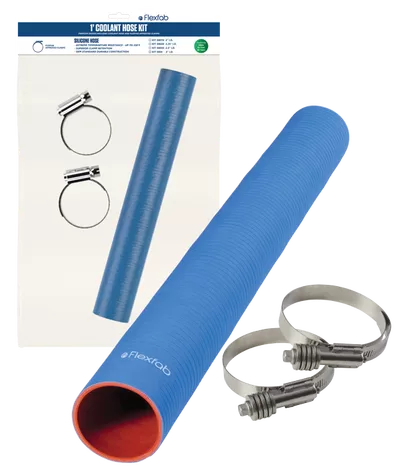

KIT3002 by FlexFab | 3000 Series | Coolant Hose and Clamp | 1' Coolant Hose | Kit

KIT3002 by FlexFab | 3000 Series | Coolant Hose and Clamp | 1' Coolant Hose | Kit

Save $27.79 Save $27.79
$69.47
$69.47 - $69.47
$69.47
$41.68
$41.68 - $41.68
$41.68

Flexfab Industrial Hose Kit - Series 300 - Coolant Hose Kit with Clamp
Specifications for Variant SKU: KIT3002 FlexFab
Series: 3000 Series
Specifications:
  • Meets or exceeds the operating requirements of SAE J20 R1 Class A
  • Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
  • Custom wall thickness is .140”/.190”
  • Working pressure is 1/3 of the burst pressure
  • Resists hardening, cracking, cold leaks, aging, and many chemicals
  • Ideal for extreme temperature and various pressure ranges where high performance levels are required
Construction:
  • Silicone hose with 3 plies of polyester reinforcement
  • Available in: Blue
  • Stocked in 1’ lengths
Part Number Hose Length ID (Hose) OD (Hose) ID (Clamp) Actual Burst Pressure PSI Part Number (Hose) Part Number (Clamp)
KIT3001 12" 2" 2.32 1.75" - 2.63" 250 PSI 5515-200 FLX2584-0262
KIT3002 12" 2.25" 2.57 2.25" - 3.13" 225 PSI 5515-225 FLX2584-0312
KIT3003 12" 2.50" 2.82 2.25" - 3.13" 200 PSI 5515-250 FLX2584-0312
KIT3004 12" 3" 3.32 2.75" - 3.63" 200 PSI 5515-300 FLX2584-0362
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
