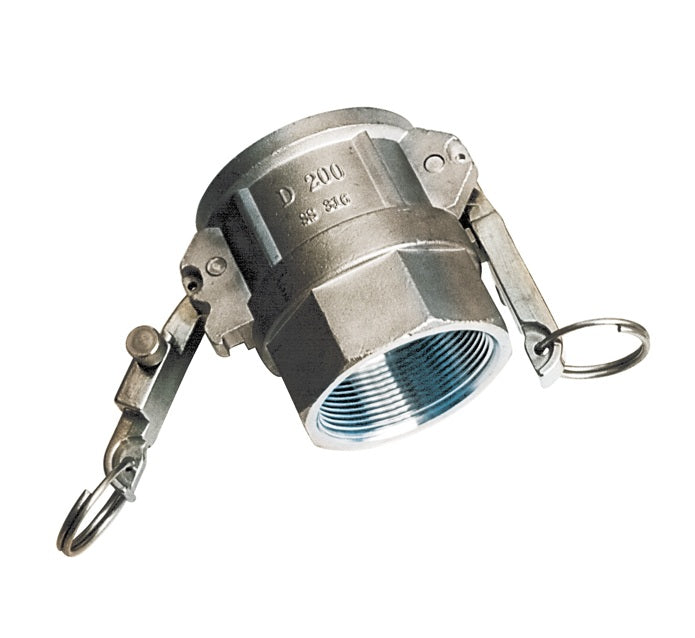

KLOC-SS-D200 by Kuriyama | KLOC-SS-D Series | Part D | K-Loc™ Auto Lock Quick Acting Cam & Groove Adapter | 2" Coupler x 2" Female NPT | 316 Stainless Steel

KLOC-SS-D200 by Kuriyama | KLOC-SS-D Series | Part D | K-Loc™ Auto Lock Quick Acting Cam & Groove Adapter | 2" Coupler x 2" Female NPT | 316 Stainless Steel

Save $19.88 Save $19.88
$126.61
$126.61 - $126.61
$126.61
$106.73
$106.73 - $106.73
$106.73

Kuriyama Couplings™ - Quick-Acting Couplings - K-Loc™ Auto Lock - Part D - Female Coupler x Female NPT - 316 Stainless Steel

Specifications for Variant SKU: KLOC-SS-D200 Kuriyama
Series: KLOC-SS-D Series
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 2in Female Cam & Groove, 2in Female NPT
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
  • An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
  • The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.

What are the Features?

  • High quality design made for use in petroleum markets with bottom loading applications.
  • Stainless steel alloy is analyzed on every melt, and specifically designed for high tensile strength and rigidity.
  • Self-Locking handle provides maximum security and safety when connecting with male parts.

What are the Materials?

  • ASTM stainless steel alloy, specially designed for high tensile strength and impact resistance.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
  • 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • Buna-N gasket included.
Part Number Coupler Size
(in)		 Male NPT Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
KLOC-SS-D150 1-1/2" 1-1/2" 250 PSI A666/316 1.74 lbs
KLOC-SS-D200 2" 2" 250 PSI A666/316 2.26 lbs
KLOC-SS-D300 3" 3" 150 PSI A666/316 3.85 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
