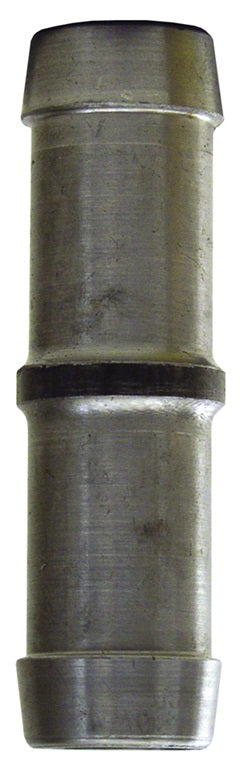

KM21 by Dixon Valve | King Hose Mender/Splicer | For One Clamp | 1/4" Hose ID x 1/4" Hose ID | Steel

KM21 by Dixon Valve | King Hose Mender/Splicer | For One Clamp | 1/4" Hose ID x 1/4" Hose ID | Steel

Save $9.73 Save $9.73
$24.33
$24.33 - $24.33
$24.33
$14.60
$14.60 - $14.60
$14.60

Dixon Valve
King Hose Mender/Splicer | For One Clamp | Hose Barb x Hose Barb
Specifications for Variant SKU: KM21 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Hose Barb, Some Ends Match
Material(s): Steel
Safety Notes:
  • Menders are not for compressible products such as air, nitrogen or steam.
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instructions on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
Steel
Part Number		 Size
KM21 1/4"
KM251 5/16"
KM41 1/2"
KM51 5/8"
KM61 3/4"
KM81 1"
KM101 1-1/4"
KM121 1-1/2"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
