KSW56 by Dixon Valve | King Safety Whipsock | 3-1/2" Size | 3.937" - 4.724" OD Range | 72.05" Length | Galvanized Carbon Steel

Save $280.29

$700.73

$700.73 - $700.73

$700.73

$420.44

$420.44 - $420.44

$420.44

Dixon Valve
King Safety Whipsock

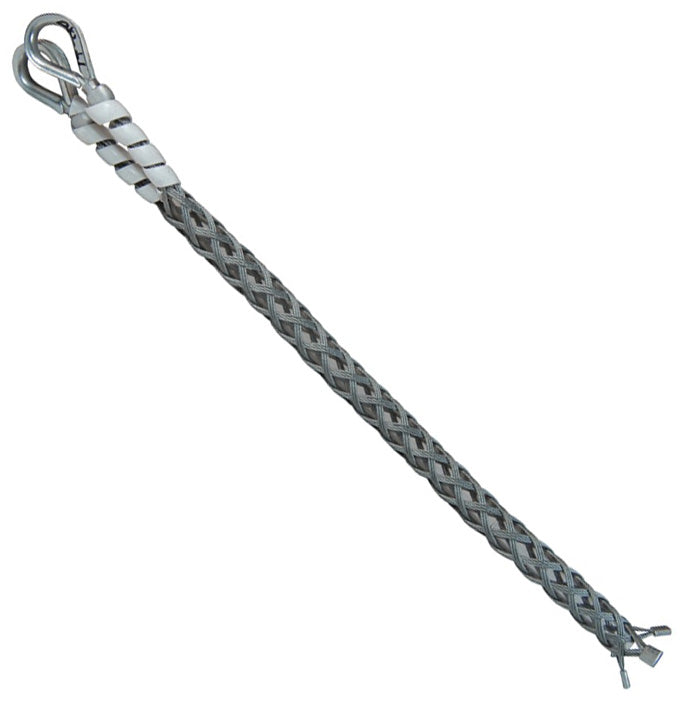

King safety whipsocks keep the hose under control in the event of a high-pressure hose assembly failure.

Ideally suited for applications where the media being transferred is under higher working pressures such as air, water, hydraulic, and slurry.

Specifications for Variant SKU: KSW56 Dixon
Brand:	King
Series:	KSW Series

Features:

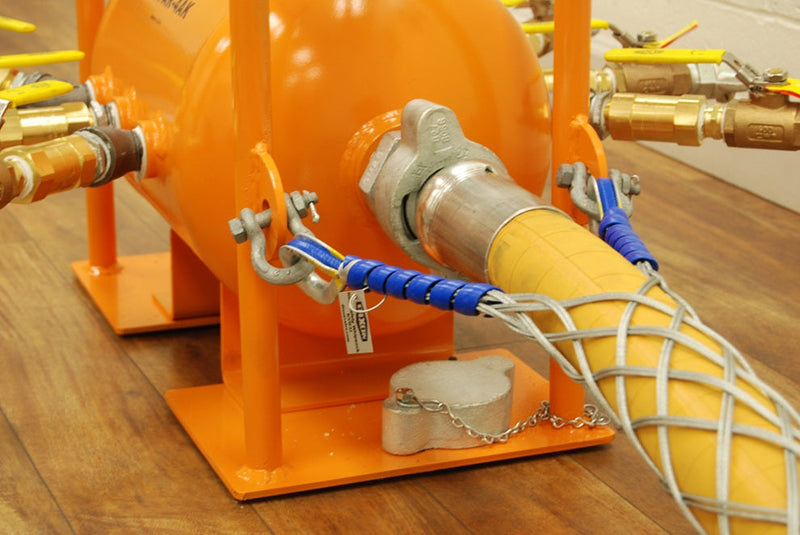

King safety whipsocks keep the hose under control in the event of a high-pressure hose assembly failure. Dual anchor points secured beyond the fittings eliminate hose whip. Galvanized steel woven stockings extend down the hose to grip securely over a larger area preventing whip, abrasion, and wear. Securing both eye-to-rigid or eye-to-eye anchor points reduces whip in the event of a hose connection failure.
Materials:
Wire rope: galvanized carbon steel Ferrules: aluminum
Safety Notes:
Be sure the anchoring points are rated for the application.
Installation:
High pressure hose restraint designed to secure hose-to-hose and hose-to-rigid anchor points to minimize uncontrolled movement in the event of hose connection failure or separation. Note: For ease of installation, it's recommended to attach prior to installing the coupling assembly. 1. Select the appropriate King Safety Whipsock based on the hose O.D. and working pressure of the hose. For shorter assemblies a custom double ended, 4-eye Whipsock, must be used. Note: Only use custom Whipsocks on the specific length and diameter it is labeled for. 2. Always inspect the entire King Safety Whipsock for frayed wire and corrosion before each use and installation. Replace immediately if damaged or worn. 3. It is necessary that the hose is clean and free from oil and dirt before use. 4. Compress the tail end of the King Safety Whipsock to open the ID, and work the stocking to slide the grip down the length of the hose. Run your hands down the grip from the coupling end to the tail to smooth out any gaps or loose wires in the grip to ensure contact with the hose. 5. After coupling, slide the King Safety Whipsock up the hose into secured position just behind the fitting, ensuring the eyes have enough length to reach the anchoring points. Avoid overlapping the stockings if King Safety Whipsocks are on each end of the hose. 6. Using a King Safety Shackle or bolt, nut and pin style clasp, rated above the breaking strength of the hose, secure the hose restraint at two horizontally opposed, rigid anchor points rated for the application. 7. Slight slack in the legs is preferred. This will allow a travel distance for coupling in disconnection and greatly reduce the load applied to the hose restraint. A travel distance of up to 1" - 2" (40-50mm) is recommended.

Part Number	Size	O.D. Range	Length	Maximum Working Pressure	Use with King Safety Shackle:
KSW06	3/8"	0.315" - .5512"	15.75"	5,000 PSI	KSS04
KSW08	1/2"	0.5512" - .7874"	21.65"	3,000 PSI	KSS04
KSW12	3/4"	0.7874" - 1.181"	25.20"	2,000 PSI	KSS04
KSW16	1"	1.181" - 1.575"	34.25"	1,500 PSI	KSS06
KSW20	1-1/4"	1.575" - 1.969"	38.19"	1,000 PSI	KSS06
KSW24	1-1/2"	1.969" - 2.362"	49.21"	700 PSI	KSS06
KSW32	2"	2.362" - 2.756"	51.18"	1,300 PSI	KSS06
KSW40	2-1/2"	2.756" - 3.346"	53.15"	800 PSI	KSS06
KSW48	3"	3.346" - 3.937"	72.44"	750 PSI	KSS08
KSW56	3-1/2"	3.937" - 4.724"	72.05"	550 PSI	KSS08
KSW64	4"	4.724" - 5.512"	86.61"	550 PSI	KSS08
KSW96	6"	5.512" - 7.087"	93.31"	250 PSI	KSS08

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
