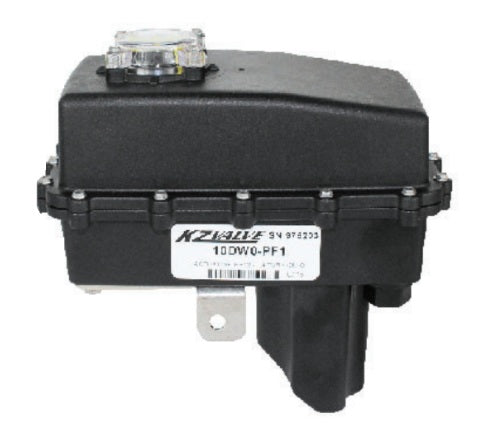

KZ-1AE9S-C01 KZ Valve by Banjo | ACTUATOR ONLY (CONXALL) for KZVALVE Anhydrous Ammonia (NH3) Actuated Valves | EH9 Actuator Series | For Valve Size: Up to 1" | Control Type: ON/OFF

KZ-1AE9S-C01 KZ Valve by Banjo | ACTUATOR ONLY (CONXALL) for KZVALVE Anhydrous Ammonia (NH3) Actuated Valves | EH9 Actuator Series | For Valve Size: Up to 1" | Control Type: ON/OFF

Save $175.25 Save $175.25
$438.12
$438.12 - $438.12
$438.12
$262.87
$262.87 - $262.87
$262.87

Banjo® Liquid Handling Products
KZ Valve | ACTUATOR ONLY (CONXALL) for KZVALVE Anhydrous Ammonia (NH3) Actuated Valves
Specifications for Variant SKU: KZ-1AE9S-C01 Banjo
Brand: KZ Valve
Series: EH2 Actuator Series
Part Number Actuator Series Control Type For Valve Brand For Valve Sizes Cycle Time Retrofit Actuator
Mounting Kit
Required
KZ-20DY0-CF1* EH2 Fast Rate Raven 1 - 1 1/2" 1.5 SEC KZ-KRKIT For 1" & 1 1/4" Raven Valves
KZ-KR15KIT For 1-1/2" Raven Valves
KZ-10DY0-CF1* EH2 ON/OFF Raven 1 - 1 1/2" 1.5 SEC KZ-KRKIT For 1" & 1 1/4" Raven Valves
KZ-KR15KIT For 1-1/2" Raven Valves
KZ-K0HU0-CF1* EH2 Standard Rate Raven 1 - 1 1/2" 8.0 SEC KZ-KRKIT For 1" & 1 1/4" Raven Valves
KZ-KR15KIT For 1-1/2" Raven Valves
KZ-20E8S-C01 EH9 Fast Rate KZValve Up To 1" 1.5 SEC -
KZ-1CE9S-D01 EH9 ON/OFF KZValve Up To 1" 0.7 SEC -
KZ-20E7S-D01 EH9 Standard Rate KZValve Up To 1" 3 SEC -
KZ-20E8S-D01 EH9 Fast Rate KZValve Up To 1" 1.7 SEC -
KZ-1AE9S-C01 EH9 ON/OFF KZValve Up To 1" 0.7 SEC -

* These actuators are designed to replace Raven actuators on Raven valves. They require a retrofit actuator mounting kit.

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
