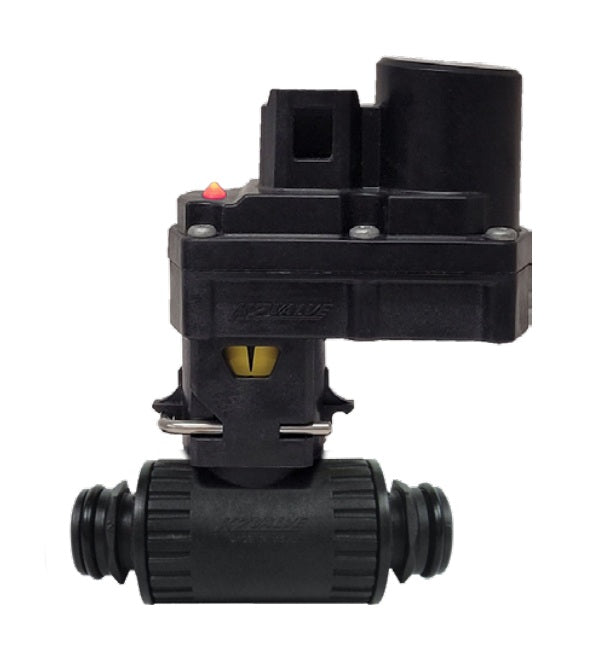

KZ-21CA9-1CEFS-D01 KZ Valve by Banjo | TX2 Series | Polypropylene Electric Valve | 1/2" Size | Male Quick Disconnect Ends | Control Type: ON/OFF

Minimum Order Quantity: 5 Units

Save $135.09

$337.72

$337.72 - $337.72

$337.72

$202.63

$202.63 - $202.63

$202.63

Banjo® Liquid Handling Products
KZ Valve | TX2 Series | Polypropylene Electric Valve

Specifications for Variant SKU: KZ-21CA9-1CEFS-D01 Banjo
Brand:	KZ Valve
Series:	TX2 Series
Material(s):	Polypropylene
Applicable Specs & Approvals:	NEMA 6P, NEMA 7D, IP68M, IP69K per ISO 20653, IEC 60529 EH7

Features:
Compact design weighing only 8 - 19 ounces, which allows for more options when mounting. Valves are made for actuation with KZValve Waterproof EH6 & EH7 Actuators providing longer valve and actuator life. EH6 Electric Actuator housing is rated NEMA 6P (waterproof) and 7D (explosion proof) per NEMA 250 EH7 Electric Actuator housing is rated NEMA 6P to protect internal components from corrosion and extends actuator life. EH6 Electric Actuator housing meets the IP68M and IP69K per ISO 20653 and IEC 60529 EH7 Electric Actuator housing meets the IP68 rating of IEC 60529 & ISO 20653 standard degree of protection provided by enclosures against water intrusion.
Materials:
Valve body: Polypropylene, glass-filled Ball: 316 stainless steel Stem: 316 stainless steel Valve seat: Carbon graphite filled PTFE with EPDM back-up O-rings Stem seal: Viton™

Part Number	Description	Control Type	Size	Feedback	Cycle Time
KZ-21CA9-1CEFS-D01	EH6, Male Quick Disconnect Ends	ON/OFF	1/2"	(+) @ Closed	0.5 Sec
KZ-G2D37-1CEFS-D01	EH6, M100 Flange x Quick Disconnect	ON/OFF	1/2"	(+) @ Closed	0.5 Sec
KZ-H2D37-10DK0-P01	EH6, Quick Disconnect Ends	ON/OFF	1/2"	(+) @ Closed	0.5 Sec
KZ-H2D37-1CEFS-D01	EH6, Quick Disconnect Ends	ON/OFF	1/2"	(+) @ Closed	0.5 Sec
KZ-H7D37-1CEFS-D01	EH6, Quick Disconnect Ends, Bottom Load	ON/OFF	1/2"	(+) @ Closed	0.5 Sec

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
