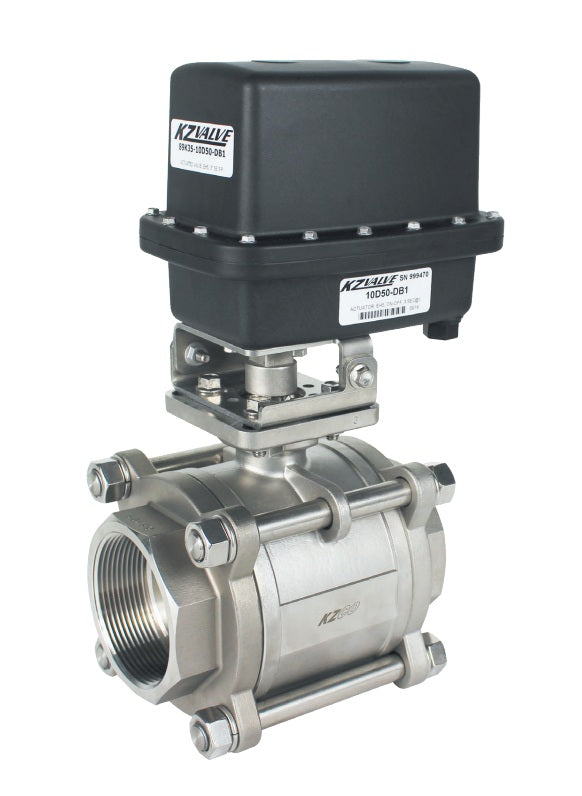

KZ-89H22-10EYS-PF1 KZ Valve by Banjo | 89 Series | Electric Stainless Steel 3-Piece Ball Valve | 1-1/2" Female NPT | Control Type: ON/OFF

Name: KZ-89H22-10EYS-PF1 KZ Valve by Banjo | 89 Series | Electric Stainless Steel 3-Piece Ball Valve | 1-1/2" Female NPT | Control Type: ON/OFF
Brand: Banjo
SKU: KZ-89H22-10EYS-PF1 Banjo
Price: 708.89 USD
Availability: InStock

Minimum Order Quantity: 5 Units

Save $472.59

$1,181.48

$1,181.48 - $1,181.48

$1,181.48

$708.89

$708.89 - $708.89

$708.89

Banjo® Liquid Handling Products
KZ Valve | 89 Series | Electric Stainless Steel 3-Piece Ball Valve

Specifications for Variant SKU: KZ-89H22-10EYS-PF1 Banjo
Brand:	KZ Valve
Series:	89 Series
Ends Configuration:	\1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match\
Material(s):	Stainless Steel
Applicable Specs & Approvals:	IP68, NEMA 6P, NEMA 7D

Features:
Waterproof actuator housing is rated NEMA 6P to protect internal components from corrosion and extend actuator life. Actuator housing is ignition safe (Rated NEMA 7D and meets the USCG Electrical Systems Standard) to support user and environment protection.
Materials:
Valve body: CF8M stainless steel. Ball: 316 stainless steel. Stem: 316 stainless steel. Seat: Virgin PTFE. Stem packing: PTFE and Viton™. Glass-filled nylon housing is durable, impact resistant, provides long life and lower maintenance cost.

Part Number	Description	Control Type	Cycle Time
KZ-89D33-1CE9S-D01	EH3, 1/2" Female NPT	ON/OFF	0.7 Sec
KZ-89H22-10EYS-PF1	EH2, 1 1/2" Female NPT	ON/OFF	1.5 Sec
KZ-89K35-10E5S-PB1	EH5, 3" Female NPT	ON/OFF	3 Sec

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
