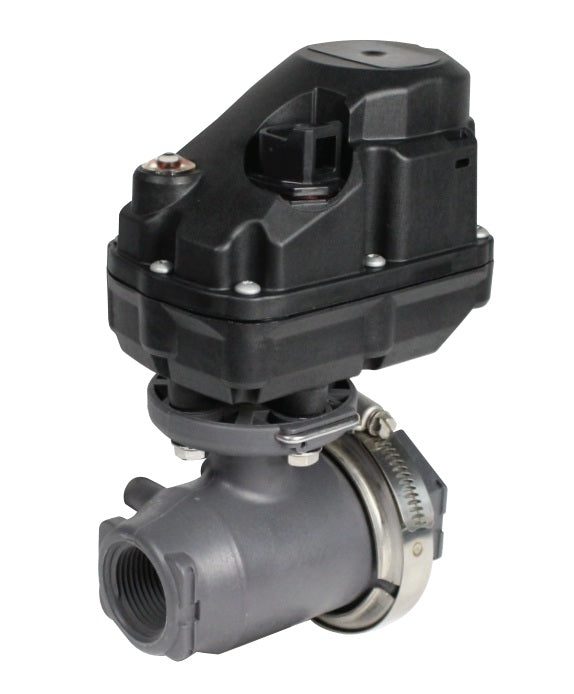

KZ-F2F33-1CE9S-D01 KZ Valve by Banjo | QX Series | Polypropylene Electric Valve | 1" Female NPT | Stainless Steel Ball | Control Type: ON/OFF

Minimum Order Quantity: 5 Units

Save $130.92

$458.23

$458.23 - $458.23

$458.23

$327.31

$327.31 - $327.31

$327.31

Banjo® Liquid Handling Products
KZ Valve | QX Series | Polypropylene Electric Valve

Specifications for Variant SKU: KZ-F2F33-1CE9S-D01 Banjo
Brand:	KZ Valve
Series:	QX Series
Material(s):	Polypropylene
Applicable Specs & Approvals:	NEMA 6P, NEMA 7D, IP68, IEC 60529, ISO 20653

Features:
Waterproof actuator housing is rated NEMA 6P to protect internal components from corrosion and extend actuator life. Actuator housing is ignition safe (Rated NEMA 7D and meets the USCG Electrical Systems Standard) to support user and environment protection. EH3 and EH9 Electric Actuator housings meets the IP68 rating of IEC 60529 & ISO 20653 standard degree of protection provided by enclosures against water intrusion.
Materials:
Ball: 316 stainless steel. Stem: 316 stainless steel. Valve seat: Virgin PTFE with EPDM back-up O-rings. Stem Seal: Dual Viton™ O-ring. Body seals: EPDM. Glass-filled nylon housing is durable, impact resistant, provides long life and lower maintenance cost.

Part Number	Description	Control Type	Cycle Time
KZ-F2E33-1CE9S-D01	EH9, 3/4" Female NPT \| Stainless Steel Ball	ON/OFF	0.7 Sec
KZ-F2F33-1CE9S-D01	EH9, 1" Female NPT \| Stainless Steel Ball	ON/OFF	0.7 Sec
KZ-F2H22-10EYS-PF1	EH2, 1-1/2" Female NPT \| Stainless Steel Ball	ON/OFF	1.5 Sec
KZ-F4F33-1CE9S-D0V	EH3, 1" Female NPT, Bottom Load \| Stainless Steel Ball	ON/OFF/ON	1.6 Sec

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.

Shop Parts by Banjo
