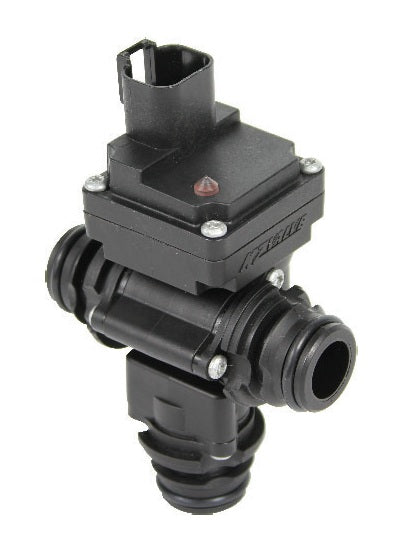

KZ-NQZC28-1CEBS-D01 KZ Valve by Banjo | Electric 2-Way ZipValve | 3/8" Port Size | 1/2" Push Lock Ends | Deutsch DT04-4 Pin Connection | Control Type: ON/OFF | Nylon

Save $77.03

$192.58

$192.58 - $192.58

$192.58

$115.55

$115.55 - $115.55

$115.55

Banjo® Liquid Handling Products
KZ Valve | Electric 2-Way ZipValve

Specifications for Variant SKU: KZ-NQZC28-1CEBS-D01 Banjo
Brand:	KZ Valve
Series:	ZipValve
Material(s):	Nylon
Applicable Specs & Approvals:	NEMA 6P, IP68, NEMA 7D

Features:
Waterproof, rated NEMA 6P and IP68 LED device diagnostics on EH8 and EH9 Durable, glass filled nylon housing Ignition safe, rated NEMA 7D Integrated Deutsch DT04-4 Pin connection 12 and 24 VDC capable Extremely low continuous power consumption High flow capacity in a compact valve design

Part Number	Description	Port Size	Control Type	Feedback	Cycle Time
2-Way Nylon ZipValves
KZ-NAZC28-1CEBS-D01	EH8, MALE Quick Disconnect Ends	3/8"	ON/OFF	N/A	0.2 Sec
KZ-NAZC28-1CEBS-R01	EH8, MALE Quick Disconnect Ends	3/8"	ON/OFF	N/A	0.2 Sec
KZ-NMZB28-1CEBS-D01	EH8, 1/4" Male NPT	1/4"	ON/OFF	N/A	0.2 Sec
KZ-NMZB28-1CEBS-R01	EH8, 1/4" Male NPT	1/4"	ON/OFF	N/A	0.2 Sec
KZ-NPZC28-1CEBS-D01	EH8, 3/8" Push Lock	3/8"	ON/OFF	N/A	0.2 Sec
KZ-NPZC28-1CEBS-R01	EH8, 3/8" Push Lock	3/8"	ON/OFF	N/A	0.2 Sec
KZ-NQZC28-1CEBS-D01	EH8, 1/2" Push Lock	3/8"	ON/OFF	N/A	0.2 Sec
KZ-NQZC28-1CEBS-R01	EH8, 1/2" Push Lock	3/8"	ON/OFF	N/A	0.2 Sec
3-Way Nylon ZipValves
KZ-NA4C28-1CEBS-D0V	EH8, BL, MALE Quick Disconnect Ends	3/8"	ON/OFF	N/A	0.4 Sec

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
