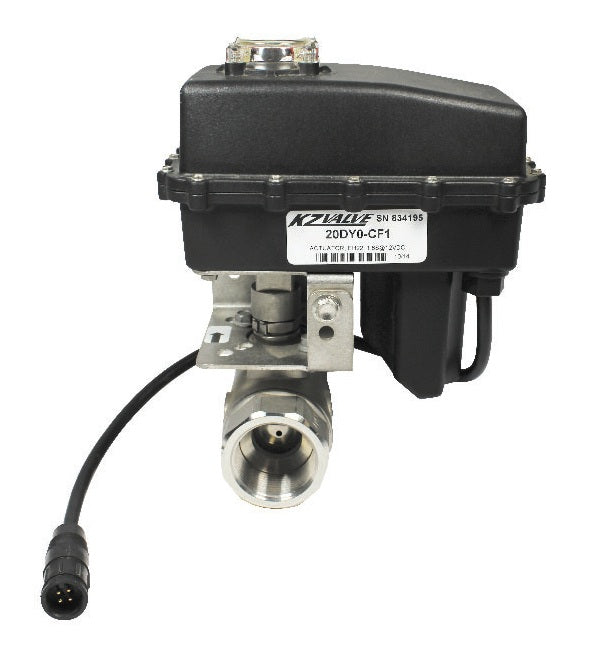

KZ-S8F22-K0HU0-CF1 KZ Valve by Banjo | Anhydrous Ammonia (NH3) Actuated Valve with Conxall Connector for Raven Systems | 1" Female NPT | Control Type: STANDARD RATE | Stainless Steel

KZ-S8F22-K0HU0-CF1 KZ Valve by Banjo | Anhydrous Ammonia (NH3) Actuated Valve with Conxall Connector for Raven Systems | 1" Female NPT | Control Type: STANDARD RATE | Stainless Steel

Save $229.17 Save $229.17
$802.10
$802.10 - $802.10
$802.10
$572.93
$572.93 - $572.93
$572.93

Banjo® Liquid Handling Products
KZ Valve | Anhydrous Ammonia (NH3) Actuated Valve with Conxall Connector for Raven Systems

Waterproof, rated NEMA 6P and IP68M.
Specifications for Variant SKU: KZ-S8F22-K0HU0-CF1 Banjo
Brand: KZ Valve
Ends Configuration: \1in Female NPT, 1in Female NPT, Some Ends Match\
Material(s): Stainless Steel
Seal Material(s): EPDM
Applicable Specs & Approvals: NEMA 6P, IP68M, NEMA 7D
Features:
  • Waterproof, rated NEMA 6P and IP68M.
  • LED device diagnostics on EH8 and EH9.
  • Durable, glass filled nylon housing.
  • Ignition safe, rated NEMA 7D.
  • 316 stainless steel stem with EPDM O-rings and PTFE packing.
  • Conxall and Deutsch connections available. WeatherPak harness available separately.
  • CF8M stainless steel valve body.
Part Number Actuator Series Female NPT Size Control Type Feedback Cycle Time CV
KZ-67D33-1AE9S-C01 EH9 ½" ON/OFF (+) @ OPEN 0.7 SEC 15
KZ-S8F33-1AE9S-C01 EH9 1" (FP) ON/OFF (+) @ OPEN 0.7 SEC 68
KZ-S8F33-20E8S-C01 EH9 1" (FP) FAST RATE N/A 3.0 SEC 68
KZ-S8F22-K0HU0-CF1 EH2 1" (FP) STANDARD RATE N/A 8.0 SEC 68
KZ-67G22-10DY0-CF1 EH2 1-1/4" ON/OFF N/A 1.5 SEC 48
KZ-67G22-20DY0-CF1 EH2 1-1/4" FAST RATE N/A 1.5 SEC 48
KZ-67G22-K0HU0-CF1 EH2 1-1/4" STANDARD RATE N/A 8.0 SEC 48
KZ-67H22-10DY0-CF1 EH2 1-1/2" ON/OFF N/A 1.5 SEC 84
KZ-67H22-20DY0-CF1 EH2 1-1/2" FAST RATE N/A 1.5 SEC 84

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
