KZ-T2H22-10EYS-PF1 KZ Valve by Banjo | TRU-TORQUE Series | Polypropylene Electric Valve | M200 | Stainless Steel Ball | Control Type: ON/OFF

Minimum Order Quantity: 5 Units

Save $407.57

$1,018.92

$1,018.92 - $1,018.92

$1,018.92

$611.35

$611.35 - $611.35

$611.35

Banjo® Liquid Handling Products

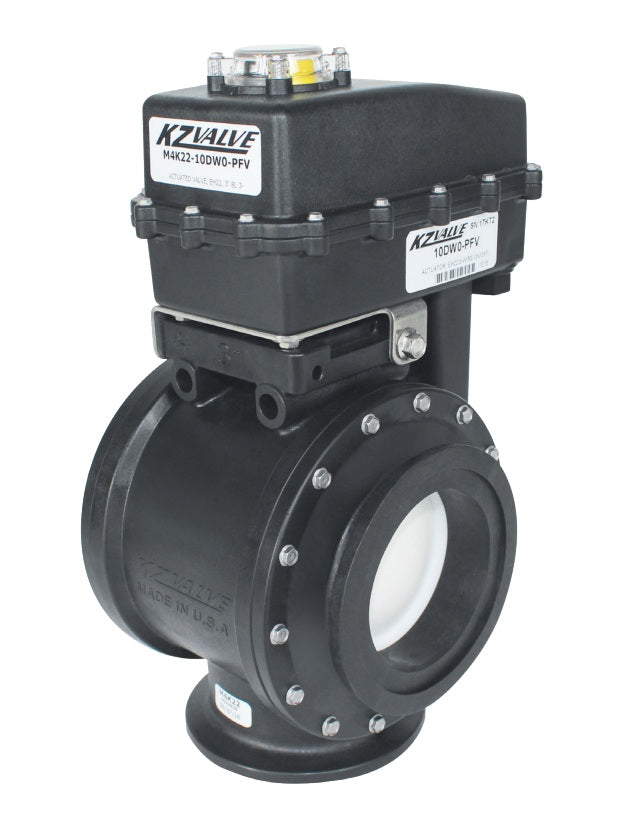

KZ Valve | TRU-TORQUE Series | Polypropylene Electric Valve

Specifications for Variant SKU: KZ-T2H22-10EYS-PF1 Banjo
Brand:	KZ Valve
Series:	TRU-TORQUE
Material(s):	Polypropylene
Applicable Specs & Approvals:	IP68, NEMA 6P, NEMA 7D

Features:
Mounting bosses are molded into the valve body which reduces mounting time and maintains undisturbed torque specifications of the ball and end caps, a common problem for plastic, bolted ball valves. Waterproof nylon actuator case is IP68, NEMA 6P, and NEMA 7D rated for long life and lower cost of service. Designed flows for 180° rotation On/Off/On with no mixing or On/On with no mixing.
Materials:
Valve body: Polypropylene, EPDM O-rings Ball: Polypropylene Stem: 316 stainless steel Valve seat: Virgin PTFE with EPDM back-up O-rings Stem seal: Dual Viton™ O-rings

Part Number	Description	Control Type	Cycle Time
KZ-M4K22-10DW0-PFV	EH2, M300, Bottom Load	ON/OFF/ON	6 Sec
KZ-T2H22-10EYS-PF1	EH2, M200, Stainless Steel Ball	ON/OFF	1.5 Sec

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
