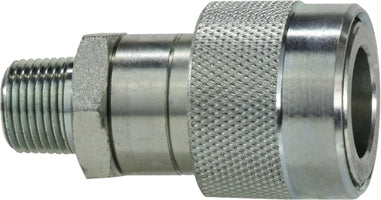

KZEB38SM by Midland | Hydraulic Quick Disconnect | Thread Lock Hydraulic Jack Coupler | 3/8" Body Size | 3/8" Male NPT | Steel

Save $0.58 Save $0.58
Original price $17.19
Original price $17.19 - Original price $17.19
Original price $17.19
Current price $16.61
$16.61 - $16.61
Current price $16.61

Midland Industries
Hydraulic Quick Disconnects: Thread Lock Hydraulic Jack Coupler - Steel

Thread lock couplings with their threaded union locking system and precision ball-type check valves are designed for extreme high pressure applications such as portable hydraulic jacks.

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 685 Units

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: KZEB38SM Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Male Thread Lock Hydraulic Jack QD Interchange, 3/8in Male NPT
Material(s): Steel
Seal Material(s): NBR
Features:
  • Ball Type
  • Standard seal material is NBR
  • Temperature Range -20°C +120°C
Thread Lock Hydraulic Jack Male Coupler Thread Lock Hydraulic Jack Female Plug
Part Number Body
Size
Male
NPT
LS D Hex A Rated
Pressure
Rated
Flow
Part Number Body
Size
Female
NPT
LP D Hex A Rated
Pressure
Rated
Flow
KZEB14SM
(KZE-B-14-SM)
1/4" 1/4" 2.40" 1.14" 0.87" 0.55" 10,000 PSI 3 GPM KZEB14PF
(KZE-B-14-PF)
1/4" 1/4" 1.30" 0.44" 0.75" 0.51" 10,000 PSI 3 GPM
KZEB38SM
(KZE-B-38-SM)
3/8" 3/8" 2.91" - 0.98" 0.57" 10,000 PSI 6 GPM KZEB38PF
(KZE-B-38-PF)
3/8" 3/8" 1.38" 0.63" 1.26" 0.55" 10,000 PSI 6 GPM
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
