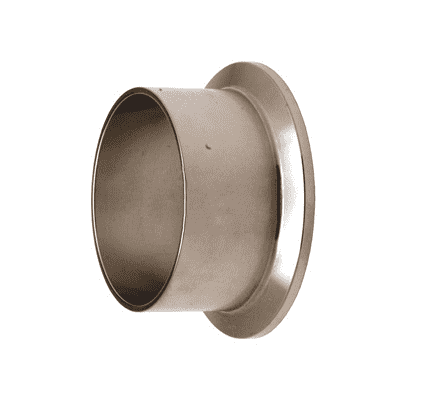

L14AM7-R1000 Dixon 316L Stainless Steel Sanitary Long Weld Ferrule - 10" Tube OD

L14AM7-R1000 Dixon Valve 316L Stainless Steel Sanitary Long Weld Ferrule - 10" Tube OD

$163.00 - $163.00
$163.00
$164.61
$164.61 - $164.61
$164.61

Dixon Sanitary Fittings
Sanitary Clamp Ferrule - Long Weld Ferrule - 316L Stainless Steel
Specifications for Variant SKU: L14AM7-R1000 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Weight (Lbs.)
A B C
L14AM7-R50 1/2" 1.125 .370 .500 0.0515
L14AM7-R75 3/4" 1.25 .620 .750 0.0600
L14AM7-R100 1" 1.125 .870 1.000 0.1800
L14AM7-R150 1-1/2" 1.125 1.370 1.500 0.1500
L14AM7-R200 2" 1.125 1.870 2.000 0.2100
L14AM7-R250 2-1/2" 1.125 2.370 2.500 0.3000
L14AM7-R300 3" 1.125 2.870 3.000 0.3200
L14AM7-R400 4" 1.125 3.834 4.000 0.5450
L14AM7-R500 5" 1.125 4.782 5.000 0.1500
L14AM7-R600 6" 1.500 5.782 6.000 1.2700
L14AM7-R800 8" 1.500 7.760 8.000 1.9300
L14AM7-R1000 10" 1.750 9.782 10.000 2.6000
L14AM7-R1200 12" 1.750 11.760 12.000 3.2000
