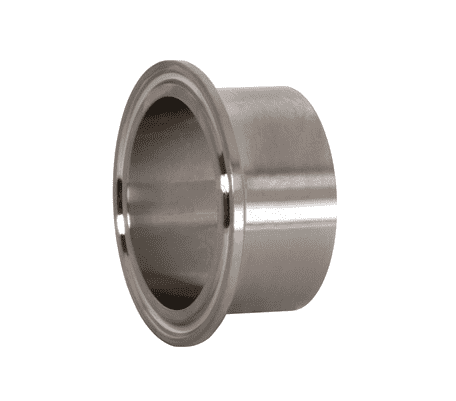

L14AM7V-R300 Dixon 316L Stainless Steel Sanitary Schedule 5S Long Weld Pipe Size Ferrule - 3" Pipe Size

L14AM7V-R300 Dixon Valve 316L Stainless Steel Sanitary Schedule 5S Long Weld Pipe Size Ferrule - 3" Pipe Size

$47.64 - $47.64
$47.64
$50.00
$50.00 - $50.00
$50.00

Dixon Sanitary Fittings Pipe Size Ferrule - Schedule 5S Long Weld Ferrule - 316L Stainless Steel
Specifications for Variant SKU: L14AM7V-R300 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • 3A sanitary finish ID and OD.
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Dimensions
 Weight (Lbs.)
A B C D
L14AM7V-R100 1" 1.98" 1.32" 1.19" 1.13" 0.8700
L14AM7V-R150 1-1/2" 2.52" 1.90" 1.77" 1.13" 0.3500
L14AM7V-R200 2" 3.05" 2.38" 2.25" 1.13" 1.1800
L14AM7V-R250 2-1/2" 3.58" 2.88" 2.71" 1.13" 1.2300
L14AM7V-R300 3" 4.13" 3.50" 3.33" 1.13" 0.4800
L14AM7V-R400 4" 5.13" 4.50" 4.33" 1.13" 0.6250
L14AM7V-R600 6" 7.20" 6.63" 6.41" 1.50" 1.2700
