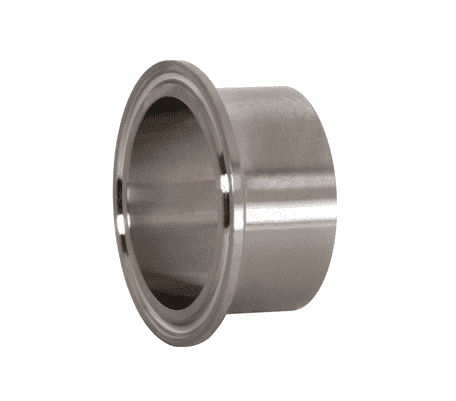

L14AM7X-R150 Dixon 316L Stainless Steel Sanitary Schedule 10S Long Weld Pipe Size Ferrule - 1-1/2" Pipe Size

L14AM7X-R150 Dixon Valve 316L Stainless Steel Sanitary Schedule 10S Long Weld Pipe Size Ferrule - 1-1/2" Pipe Size

$23.22 - $23.22
$23.22
$24.36
$24.36 - $24.36
$24.36

Dixon Sanitary Fittings
Pipe Size Ferrule - Schedule 10S Long Weld Ferrule - 316L Stainless Steel
Specifications for Variant SKU: L14AM7X-R150 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • 3A sanitary finish ID and OD.
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Dimensions

 Weight (Lbs.)
A B C D
L14AM7X-R75 3/4" - - - - 0.1850
L14AM7X-R100 1" 1.98" 1.13" 1.10" 1.32" 0.2100
L14AM7X-R150 1-1/2" 2.52" 1.13" 1.68" 1.90" 0.3100
L14AM7X-R200 2" 3.05" 1.13" 2.16" 2.38" 0.3800
L14AM7X-R250 2-1/2" 3.58" 1.13" 2.64" 2.88" 1.1000
L14AM7X-R300 3" 4.13" 1.13" 3.26" 3.50" 0.5800
L14AM7X-R400 4" 5.13" 1.13" 4.26" 4.50" 1.3500
L14AM7X-R600 6" 7.20" 1.50" 6.35" 6.63" 3.0000
L14AM7X-R800 8" - - - - -
L14AM7X-R1000 10" - - - - -
