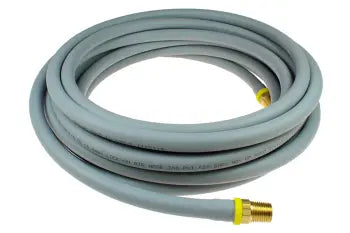

L14R050N by Coilhose | Lock-On Hose | 1/4" Hose ID | 1/2" Hose OD | 1/4" Lock-On Male NPT Thread Rigid | Gray | Rubber | 50ft

L14R050N by Coilhose | Lock-On Hose | 1/4" Hose ID | 1/2" Hose OD | 1/4" Lock-On Male NPT Thread Rigid | Gray | Rubber | 50ft

Save $72.63 Save $72.63
$181.58
$181.58 - $181.58
$181.58
$108.95
$108.95 - $108.95
$108.95
Coilhose Pneumatics - Straight Hose - Lock-On Rubber Hose
Specifications for Variant SKU: L14R050N Coilhose
Material(s): Rubber
Overview:
  • Coilhose Lock-On Rubber Hose withstands pressures up to 300 PSI and temperature up to 212&deg F. Lock-On Fittings, when used with Lock-On Hose, eliminate the need for ferrules or clamps, which facilitates quick, permanent in the field installation and repairs. Hose consists of black Nitrile tube with multiple textile spirals and gray Neoprene cover. Use with the Lock-On Hose Fittings and couplers and connectors with lock on barb. This hose adheres to a 4:1 Safety Factor and RMA Class-A - High Oil Resistance. Also our Lock-On hose has a flame resistant cover.
  • When pressurized, Lock-On Hose contracts to grip the fitting and slightly elongates, providing a positive grip of Lock-On Hose to the fitting.
Notes:
  • Reel lengths shown are approximate and may vary.
Fittings:

Part No Fittings Hose ID Hose OD Temperature Range Working Pressure
at 70 deg. F		 Length Color
L14RM06N No Fittings 1/4" 1/2" -40°F to +212°F 300 PSI 6ft Gray
L14R025N 1/4" Lock-On MPT Rigid 25ft Gray
L14RM25N No Fittings 25ft Gray
L14R050N 1/4" Lock-On MPT Rigid 50ft Gray
L14RM50N No Fittings 50ft Gray
L14R100N 1/4" Lock-On MPT Rigid 100ft Gray
L14RM100N No Fittings 100ft Gray
L14RN No Fittings 700ft Reel Gray

L38RM06N No Fittings 3/8" 21/32 -40°F to +212°F 300 PSI 6ft Gray
L38RM25N No Fittings 25ft Gray
L38R050N 3/8" Lock-On MPT Rigid 50ft Gray
L38R0504N 1/4" Lock-On MPT Rigid 50ft Gray
L38RM50N No Fittings 50ft Gray
L38R100N 1/4" Lock-On MPT Rigid 100ft Gray
L38RM100N No Fittings 100ft Gray
L38RN No Fittings 700ft Reel Gray

L12RM06N No Fittings 1/2 13/16" -40°F to +212°F 300 PSI 6ft Gray
L12RM25N No Fittings 25ft Gray
L12RM50N No Fittings 50ft Gray
L12RM100N No Fittings 100ft Gray
L12RN No Fittings 600ft Reel Gray
