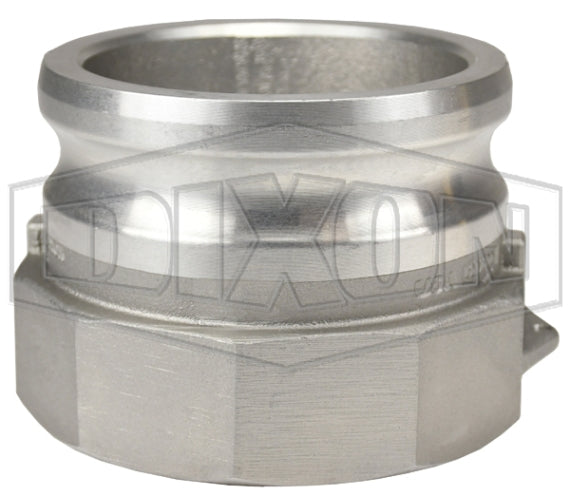

L400-A-AL by Dixon Valve | Vent-Lock® Safety Cam & Groove Adapter | Type A | 4" Adapter x 4" Female NPT | Aluminum

L400-A-AL by Dixon Valve | Vent-Lock® Safety Cam & Groove Adapter | Type A | 4" Adapter x 4" Female NPT | Aluminum

Save $4.54 Save $4.54
$59.90
$59.90 - $59.90
$59.90
$55.36
$55.36 - $55.36
$55.36

Dixon Valve
Vent-Lock® Safety Cam & Groove | Type A | Adapter x Female NPT

Transfer of fluids and solids, with a safer disconnection.
Specifications for Variant SKU: L400-A-AL Dixon
Brand: Vent-Lock, King Crimp
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 4in Male Cam & Groove, 4in Female NPT
Material(s): Aluminum
Features:
  • Safety release cam & groove couplings permit the release of static pressure when disconnecting hose assemblies.
  • Venting system protects operator from being sprayed with hazardous or non-hazardous fluids or solids.
  • Does not interchange with standard cam & groove products; use only with Dixon L-style fittings.
  • Safety orange cam arms.
Specifications:
  • Rated to 250 PSI; recommendation based on the use of mating Dixon® L-style fittings at ambient temperature 70°F (21°C) with standard nitrile rubber seal installed.
    • 1", 1-1/2" and 2" sizes have a maximum working pressure of 250 PSI.
    • 3" maximum working pressure 150 PSI with King Crimp® ferrules, crimp sleeves, and bands at 125 PSI.
    • 4" maximum working pressure 150 PSI with King Crimp ferrules, crimp sleeves, and bands at 100 PSI.
316 Stainless Steel
Part Number		 Aluminum
Part Number		 Size
L100-A-SS - 1"
L150-A-SS - 1-1/2"
L200-A-SS - 2"
L300-A-SS - 3"
- L400-A-AL 4"

Pressure rating recommendation is based on the use of mating Vent-Lock™ L-style fittings at ambient temperature 70°F (21°C) with standard Nitrile Rubber seal installed, for use at elevated temperature or other unusual operating conditions, consult Dixon.
