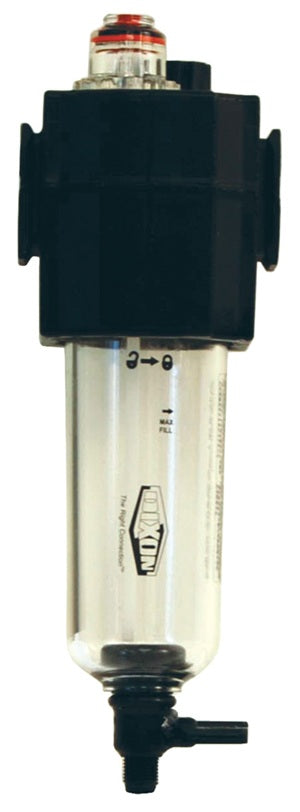

L73M-2 by Dixon Valve | L73M Series 1 | Compact Micro-Fog Lubricator | 1/4" Port Size | 60 SCFM | 4 oz. Transparent Bowl

L73M-2 by Dixon Valve | L73M Series 1 | Compact Micro-Fog Lubricator | 1/4" Port Size | 60 SCFM | 4 oz. Transparent Bowl

Save $9.25 Save $9.25
$120.60
$120.60 - $120.60
$120.60
$111.35
$111.35 - $111.35
$111.35

Dixon Valve
L73M Series 1 | Compact Micro-Fog Lubricator

Micro-fog lubricators, identified by a red adjusting screw, are used for applications containing one or more points of lubrication, cylinders, and multiple or single tools.

- 2 oz. reservoir
- In-line or modular installation

For air service only.
Specifications for Variant SKU: L73M-2 Dixon
Series: L73M Series 1
Application:
  • Micro-fog lubricators, identified by a red adjusting screw, are used for applications containing one or more points of lubrication, cylinders, and multiple or single tools.
  • Air flow through the lubricator lifts oil from the reservoir to the sight-feed dome; oil is dropped into the fog generator and atomized into a fine mist; lightweight particles are delivered downstream for lubrication; heavier particles fall back into the reservoir.
  • The micro-fog lubricator delivers 10% of the oil drops visible through the transparent sight-feed dome.
  • Micro-fog lubricators cannot be filled under pressure.
Features:
  • 4 oz. reservoir.
  • In-line or modular installation.
  • Quick release bayonet bowl.
  • Micro-fog design delivers aerosol mist.
Specifications:
  • Recommended lubricants: misting type oil rated 50 to 200 SSU (ISO Grade 7 to 46) at 100°F (38°C)
  • Maximum operating conditions:
    • Transparent Bowl: Max Pressure: 150 PSIG (10 bar)
      Temperature Range: -30°F to 125°F (-34°C to 51°C)
    • Metal Bowl: Max Pressure: 250 PSIG (17 bar)
      Temperature Range: -30°F to 175°F (-34°C to 80°C)
  • SCFM ratings at 90 PSIG inlet pressure.
Dimensions:
Transparent Bowl
Part Number		 Metal Bowl
Part Number		 Port Size Flow (SCFM)
L73M-2 L73M-2MB 1/4" 60 SCFM
L73M-3 L73M-3MB 3/8" 60 SCFM
L73M-4 L73M-4MB 1/2" 60 SCFM
