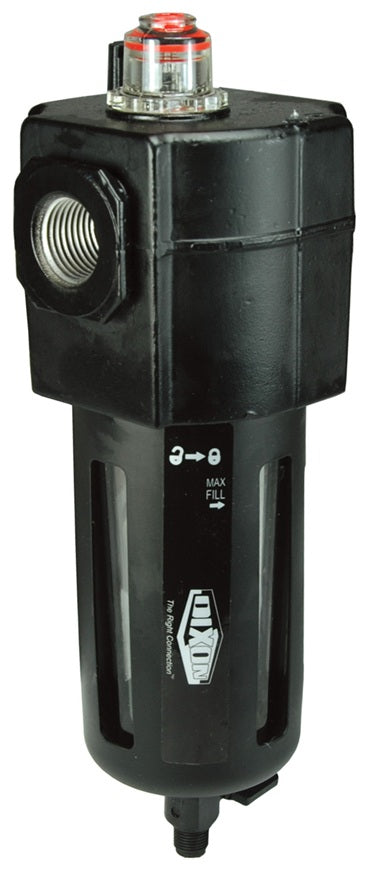

L74M-4 by Dixon Valve | L74M Series 1 | Standard Micro-Fog Lubricator | 1/2" Port Size | 154 SCFM | 7 oz. Transparent Bowl

L74M-4 by Dixon Valve | L74M Series 1 | Standard Micro-Fog Lubricator | 1/2" Port Size | 154 SCFM | 7 oz. Transparent Bowl

Save $8.87 Save $8.87
$150.44
$150.44 - $150.44
$150.44
$141.57
$141.57 - $141.57
$141.57

Dixon Valve
L74M Series 1 | Standard Micro-Fog Lubricator

Micro-fog lubricators, identified by a red adjusting screw, are used for applications containing one or more points of lubrication, cylinders, and multiple or single tools.

- 7 oz. reservoir
- In-line or modular installation

For air service only.
Specifications for Variant SKU: L74M-4 Dixon
Series: L74M Series 1
Application:
  • Micro-fog lubricators, identified by a red adjusting screw, are used for applications containing one or more points of lubrication, cylinders, and multiple or single tools.
  • Air flow through the lubricator lifts oil from the reservoir to the sight-feed dome; oil is dropped into the fog generator and atomized into a fine mist; lightweight particles are delivered downstream for lubrication; heavier particles fall back into the reservoir.
  • The micro-fog lubricator delivers 10% of the oil drops visible through the transparent sight-feed dome.
  • Micro-fog lubricators cannot be filled under pressure.
Features:
  • 7 oz. reservoir.
  • In-line or modular installation.
  • Quick release bayonet bowl.
  • Micro-fog design delivers aerosol mist.
Specifications:
  • Recommended lubricants: misting type oil rated 50 to 200 SSU (ISO Grade 7 to 46) at 100°F (38°C).
  • Maximum operating conditions:
    • Transparent Bowl: Max Pressure: 150 PSIG (10 bar)
      Temperature Range: -30°F to 125°F (-34°C to 51°C)
    • Metal Bowl: Max Pressure: 250 PSIG (17 bar)
      Temperature Range: -30°F to 175°F (-34°C to 80°C)
  • SCFM ratings at 90 PSIG inlet pressure.
Dimensions:
Transparent Bowl
Part Number		 Metal Bowl
Part Number		 Port Size Flow (SCFM)
L74M-3 L74M-3MB 3/8" 114 SCFM
L74M-4 L74M-4MB 1/2" 154 SCFM
L74M-6 L74M-6MB 3/4" 142 SCFM
