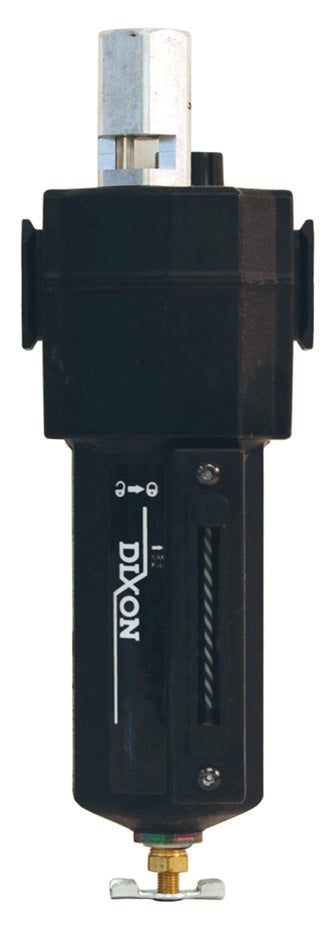

L74M-4MBPX by Dixon Valve | L74M Series 1 | Standard Micro-Fog Lubricator | with Pyrex Sight Feed Dome | 1/2" Port Size | 154 SCFM | 7 oz. Metal Bowl with Sight Glass

Save $188.15

$470.38

$470.38 - $470.38

$470.38

$282.23

$282.23 - $282.23

$282.23

Dixon Valve
L74M Series 1 | Standard Micro-Fog Lubricator with Pyrex Sight Feed Dome

Designed for use with alcohol or other anti-freeze agents when units are installed in cold temperature environments.

Micro-fog lubricators are used for applications containing one or more points of lubrication, cylinders, and multiple or single tools.

- 7 oz. reservoir
- In-line or modular installation

Specifications for Variant SKU: L74M-4MBPX Dixon
Series:	L74M Series 1

Applications:
Designed for use with alcohol or other anti-freeze agents when units are installed in cold temperature environments. Micro-fog lubricators are used for applications containing one or more points of lubrication, cylinders, and multiple or single tools. Air flow through the lubricator lifts oil from the reservoir to the sight-feed dome; oil is dropped into the fog generator and atomized into a fine mist; lightweight particles are delivered downstream for lubrication; heavier particles fall back into the reservoir.
Features:
7 oz. reservoir. In-line or modular installation. Quick release bayonet bowl. Micro-fog design delivers aerosol mist.
Specifications:
Recommended lubricants: misting type oil rated 50 to 200 SSU (ISO Grade 7 to 46) at 100°F (37°C) Inlet pressure: 250 PSI Maximum temperature: 175°F (79°C)
Dimensions:

Metal Bowl with Sight Glass Part Number	Port Size	Flow (SCFM)
L74M-3MBPX	3/8"	114 SCFM
L74M-4MBPX	1/2"	154 SCFM
L74M-6MBPX	3/4"	142 SCFM
