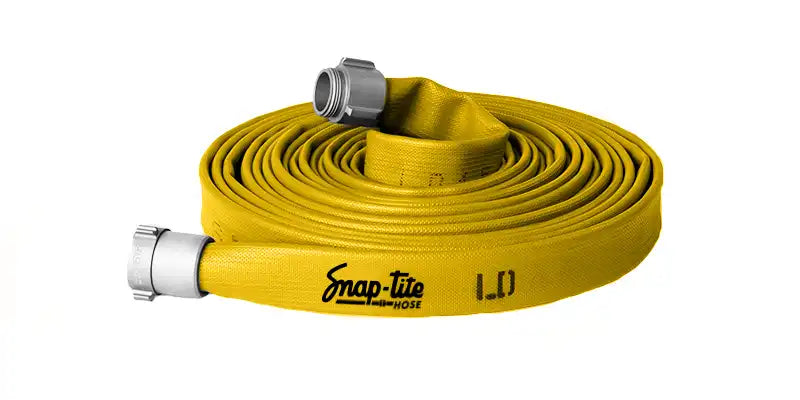

LD25X25Y25NBR by Snap-Tite | LD Series | Nitrile Fire Hose Assembly with Nylon Reinforcement | 2-1/2" Hose I.D. | 2-1/2" Male NH x 2-1/2" Female NH Rocker Lug Couplings | 300 PSI | Yellow | 25ft Length

Save $85.87

$300.54

$300.54 - $300.54

$300.54

$214.67

$214.67 - $214.67

$214.67

Snap-Tite Hose
LD™ - LIGHTWEIGHT EXTRUDED RUBBER HOSE

This hose may take 1-2 weeks to ship.

Package Quantity: 25 FT

Specifications for Variant SKU: LD25X25Y25NBR Snap-Tite
Series:	LD Series
Hose Color(s):	Yellow
Internal Diameter:	2-1/2in
Tubing Construction:	Nylon
Cover Construction:	Nitrile
Ends Configuration:	2-1/2in Male NH, 2-1/2in Female NH
Material(s):	Aluminum, Brass
Applicable Specs & Approvals:	NSF Standard 61, UL/ULC Certified

Description:
Model:	LD™
Basic Construction:	Nitrile rubber thru-the-weave with nylon reinforcing jacket
Application:	Attack
Colors:	Yellow, Red, Blue
Temperature Range:	-40° F - 200° F
LD™ is a premium quality extruded thru-the-weave, nitrile rubber hose. It is easily coiled, non-kinking, high flow, lightweight hose that resists abrasion, chemicals, and weathering by ozone.
Features:
Extruded thru-the-weave nitrile rubber fire hose with circular woven, twill weave, and nylon fiber reinforcement. Highly resistant to both conductive and radiant heat. Remains flexible to temperatures as low as -40°F (-40°C) and resists ozone, oxidation, and most chemicals and petrochemicals. Designed for industrial, construction, plant fire protection, wash down, and maintenance applications. Maintenance free, no drying required, and easily cleaned. Made in USA to ISO-9001:2015 certified quality assurance system.

Yellow
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1-1/2"	LD15X25Y15N	LD15X50Y15N	LD15X100Y15N	Standard	300 psi	600 psi	900 psi	0.20	4,300
1-1/2"	LD15X25Y15NBR	LD15X50Y15NBR	LD15X100Y15NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.20	4,300
2-1/2"	LD25X25Y25N	LD25X50Y25N	LD25X100Y25N	Standard	300 psi	600 psi	900 psi	0.40	8,500
2-1/2"	LD25X25Y25NBR	LD25X50Y25NBR	LD25X100Y25NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.40	8,500

Red
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1-1/2"	LD15X25R15N	LD15X50R15N	LD15X100R15N	Standard	300 psi	600 psi	900 psi	0.20	4,300
1-1/2"	LD15X25R15NBR	LD15X50R15NBR	LD15X100R15NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.20	4,300
2-1/2"	LD25X25R25N	LD25X50R25N	LD25X100R25N	Standard	300 psi	600 psi	900 psi	0.40	8,500
2-1/2"	LD25X25R25NBR	LD25X50R25NBR	LD25X100R25NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.40	8,500

Blue
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1-1/2"	LD15X25B15N	LD15X50B15N	LD15X100B15N	Standard	300 psi	600 psi	900 psi	0.20	4,300
1-1/2"	LD15X25B15NBR	LD15X50B15NBR	LD15X100B15NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.20	4,300
2-1/2"	LD25X25B25N	LD25X50B25N	LD25X100B25N	Standard	300 psi	600 psi	900 psi	0.40	8,500
2-1/2"	LD25X25B25NBR	LD25X50B25NBR	LD25X100B25NBR	Brass Rocker Lugs	300 psi	600 psi	900 psi	0.40	8,500

*1-year warranty.

*2-1/2” is UL/ULC Certified

*Potable water approved: No

*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
