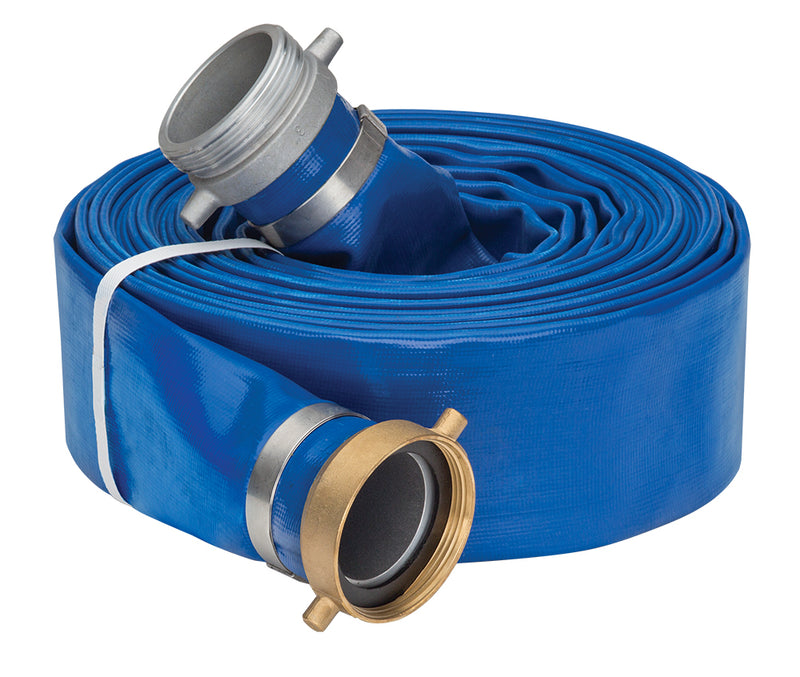

LF200APLX50 by Kuriyama | LF-APL Series | Layflat Hose Assembly | PVC | 2" Size | Blue | Male x Female Pin Lug Couplings | Aluminum | 50ft Length

Save $82.91

$146.52

$146.52 - $146.52

$146.52

$63.61

$63.61 - $63.61

$63.61

Kuriyama
LF-APL Series | Layflat Hose Assembly | Male x Female Pin Lug Couplings

Designed for agriculture, construction, contractor, industrial, and rental applications.

Specifications for Variant SKU: LF200APLX50 Kuriyama
Series:	LF-APL Series
Hose Color(s):	Blue
Tubing Construction:	PVC
Cover Construction:	PVC
Material(s):	Aluminum

Other Features:
Applications:	Agriculture Construction Contractor Industrial Rental
Construction:	Spiral homogeneous PVC construction is ideal for irrigation and agriculture applications, and provides for minimal elongation. Aluminum Couplings.
Service Temperature Range:	-10°F (-12°C) to +140°F (+60°C)
Smooth Tube - Provides low friction loss. Storage - Hose coils flat for easy storage.

Part Number Male x Female Pin Lug Couplings 50ft	Part Number Male x Female Camlock Couplings 50ft	Size		Wall Thickness	Working Pressure (PSI)
Part Number Male x Female Pin Lug Couplings 50ft	Part Number Male x Female Camlock Couplings 50ft	(in)	(mm)	(in)	at 68°F
LF150APLX50	LF150ACEX50	1-1/2"	38.1mm	0.059"	70 PSI
LF200APLX50	LF200ACEX50	2"	50.8mm	0.063"	65 PSI
LF300APLX50	LF300ACEX50	3"	76.2mm	0.067"	60 PSI
LF400APLX50	LF400ACEX50	4"	101.6mm	0.067"	50 PSI
