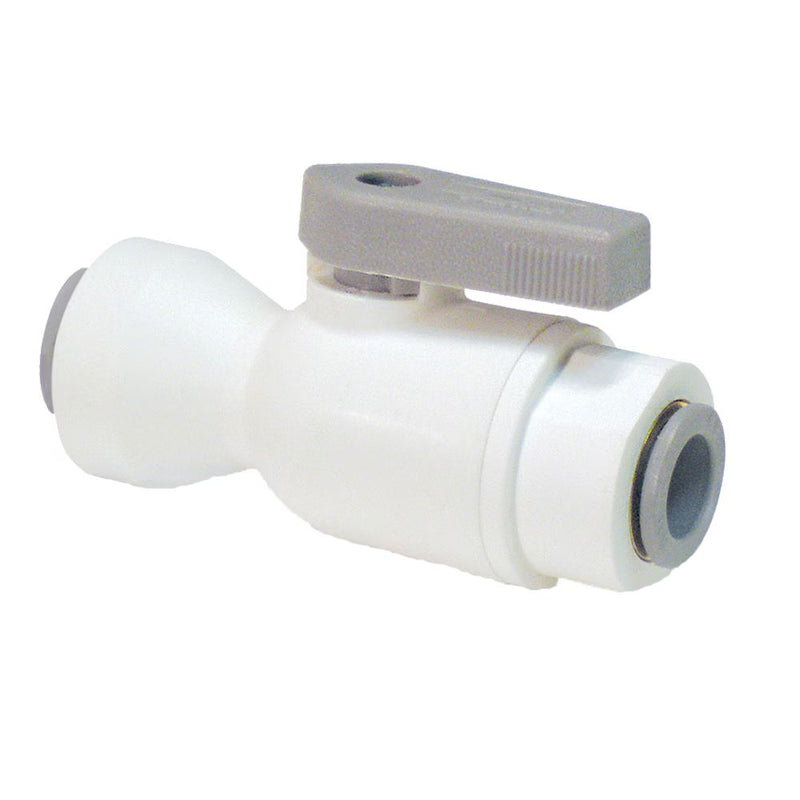

LFPP12MVUC12M by Parker | LIQUIfit® Ball Valve | 12 mm Push-to-Connect x 12 mm Push-to-Connect | 3.46" Length | Straight | Polypropylene

LFPP12MVUC12M by Parker | LIQUIfit® Ball Valve | 12 mm Push-to-Connect x 12 mm Push-to-Connect | 3.46" Length | Straight | Polypropylene

Save $11.99 Save $11.99
$29.98
$29.98 - $29.98
$29.98
$17.99
$17.99 - $17.99
$17.99

by Parker Hannifin
Ball Valves Polypropylene:VUC - Valve Union Connector Metric
Specifications for Variant SKU: LFPP12MVUC12M Parker
Brand: LIQUIfit®
Series: VUC Series
Shape (Orientation): Straight
Material(s): Polypropylene
Seal Material(s): EPDM
Special Properties: Food Grade, Corrosion Resistance, Filtration, Valved
Product Features:
  • Wide chemical acceptance range
  • Bi-directional flow maximizes productivity
  • Full flow reduces pressure drop across valve
  • EPDM Seals – LIQUIfit, TrueSeal, and Par-barb
  • Nitrile Seals – Fast and Tite
  • Push-in and barbed connections
  • Meets FDA and NSF/ANSI 51 requirements for food contact
  • LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:
  • Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting.
  • Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:
  • LFPP – LIQUIfit
  • PP – TrueSeal
  • PBPP – Par-Barb
  • FTPPB - Fast and Tite
Specification:
Temperature Range: 35° to +200° F (+1.7° to +93.3° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Tube Size 1 (mm) Tube Size 2 (mm) A (mm) B (mm) C (mm) D (mm) ØE Thru Hole Min (mm)
LFPP6MVUC6M 6 6 .57 .27 .36 .13 .19
LFPP8MVUC8M 8 8 .60 .27 .36 .13 .25
LFPP10MVUC10M 10 10 .70 .33 .36 .13 .33
LFPP12MVUC12M 12 12 .88 .43 .36 .13 .37
