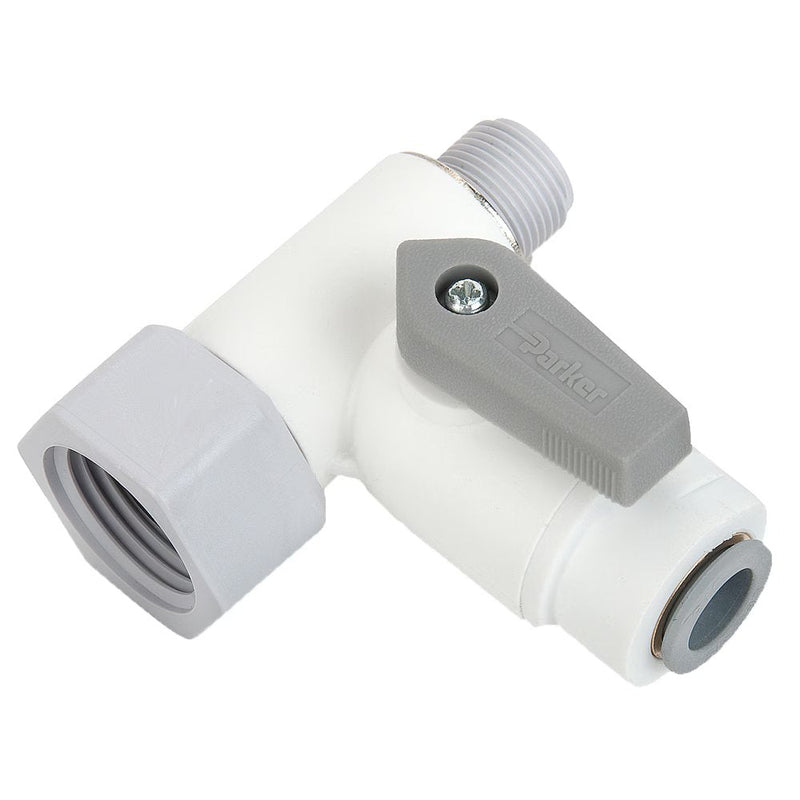

LFPP4VAS8 by Parker | LIQUIfit® Ball Valve | 1/4" Angle Stop Valve with 3/8" Male NPT Thread x 1/2" Female NPT Thread | 2.40" Length | 1.4" Height | Tee | Polypropylene

LFPP4VAS8 by Parker | LIQUIfit® Ball Valve | 1/4" Angle Stop Valve with 3/8" Male NPT Thread x 1/2" Female NPT Thread | 2.40" Length | 1.4" Height | Tee | Polypropylene

Save $0.82 Save $0.82
$12.34
$12.34 - $12.34
$12.34
$11.52
$11.52 - $11.52
$11.52

by Parker Hannifin
Ball Valves Polypropylene:Valve Angle Stop
Specifications for Variant SKU: LFPP4VAS8 Parker
Brand: LIQUIfit®
Series: VAS Series
Shape (Orientation): Tee
Material(s): Polypropylene
Seal Material(s): EPDM
Special Properties: Food Grade, Corrosion Resistance, Filtration, Valved
Product Features:
  • Wide chemical acceptance range
  • Bi-directional flow maximizes productivity
  • Full flow reduces pressure drop across valve
  • EPDM Seals – LIQUIfit, TrueSeal, and Par-barb
  • Nitrile Seals – Fast and Tite
  • Push-in and barbed connections
  • Meets FDA and NSF/ANSI 51 requirements for food contact
  • LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:
  • Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting.
  • Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:
  • LFPP – LIQUIfit
  • PP – TrueSeal
  • PBPP – Par-Barb
  • FTPPB - Fast and Tite
Specification:
Temperature Range: 35° to +200° F (+1.7° to +93.3° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Tube OD Male Thread Size Female Thread Size A B C D E F
LFPP4VAS6 1/4" 3/8" 3/8" 1.95" 1.24" 2.17" 1.11" 1.41" .91"
LFPP4VAS8 1/4" 3/8" 1/2" 1.95" 1.24" 2.40" 1.11" 1.41" .91"
LFPP6VAS6 3/8" 3/8" 3/8" 2.06" 1.35" 2.17" 1.11" 1.41" .91"
LFPP6VAS8 3/8" 3/8" 1/2" 2.06" 1.35" 2.40" 1.11" 1.41" .91"
