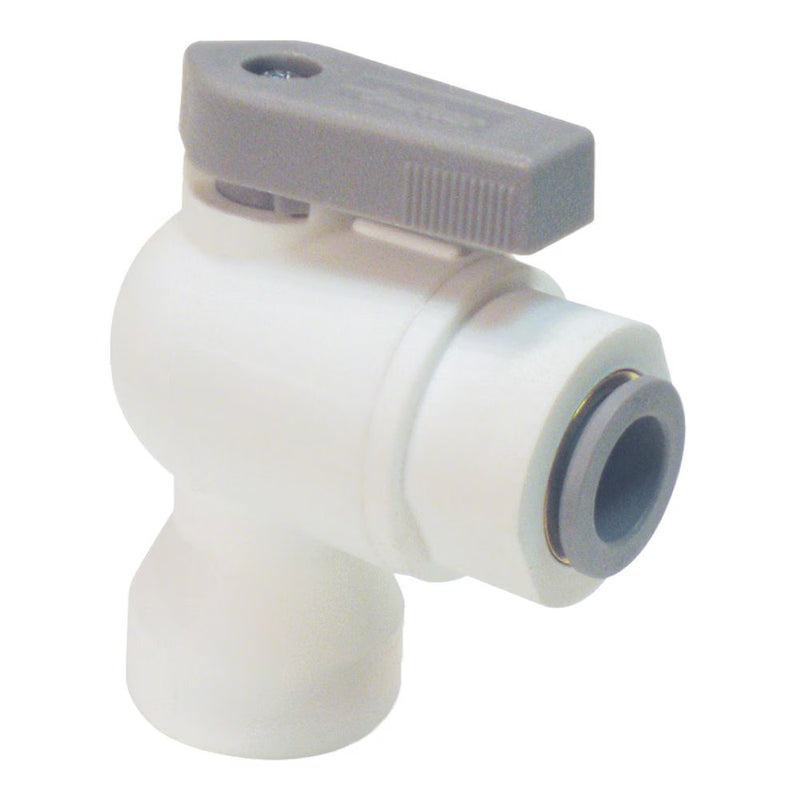

LFPP4VFE4 by Parker | LIQUIfit® Ball Valve | 1/4" Ball Valve x 1/4" Female NPTF Thread | 2.05" Length | 1.74" Width | 90° Elbow | Polypropylene

Save $0.39

$5.86

$5.86 - $5.86

$5.86

$5.47

$5.47 - $5.47

$5.47

by Parker Hannifin
Ball Valves Polypropylene:VFE - Valve Female Elbow

Quantity

Specifications for Variant SKU: LFPP4VFE4 Parker
Brand:	LIQUIfit®
Series:	VFE Series
Shape (Orientation):	90° Elbow
Material(s):	Polypropylene
Seal Material(s):	EPDM
Special Properties:	Food Grade, Corrosion Resistance, Filtration, Valved

Specification:
Product Features:	Wide chemical acceptance range Bi-directional flow maximizes productivity Full flow reduces pressure drop across valve EPDM Seals – LIQUIfit, TrueSeal, and Par-barb Nitrile Seals – Fast and Tite Push-in and barbed connections Meets FDA and NSF/ANSI 51 requirements for food contact LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:	Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting. Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:	LFPP – LIQUIfit PP – TrueSeal PBPP – Par-Barb FTPPB - Fast and Tite
Temperature Range:	35° to +200° F (+1.7° to +93.3° C)
Pressure Range:	Up to 150 PSI (10.3 bar)


Part Number	Nom. Tube OD	NPTF Thread Size	A	B	C	D	ØE Thru Hole Min
LFPP4VFE2	1/4"	1/8"	1.74"	1.21"	1.82"	.92"	.19"
LFPP4VFE4	1/4"	1/4"	1.74"	1.21"	2.05"	1.15"	.19"
LFPP4VFE6	1/4"	3/8"	1.74"	1.21"	2.18"	1.28"	.19"
LFPP6VFE2	3/8"	1/8"	1.85"	1.32"	1.82"	.92"	.25"
LFPP6VFE4	3/8"	1/4"	1.85"	1.32"	2.05"	1.15"	.25"
LFPP6VFE6	3/8"	3/8"	1.85"	1.32"	2.18"	1.28"	.25"
