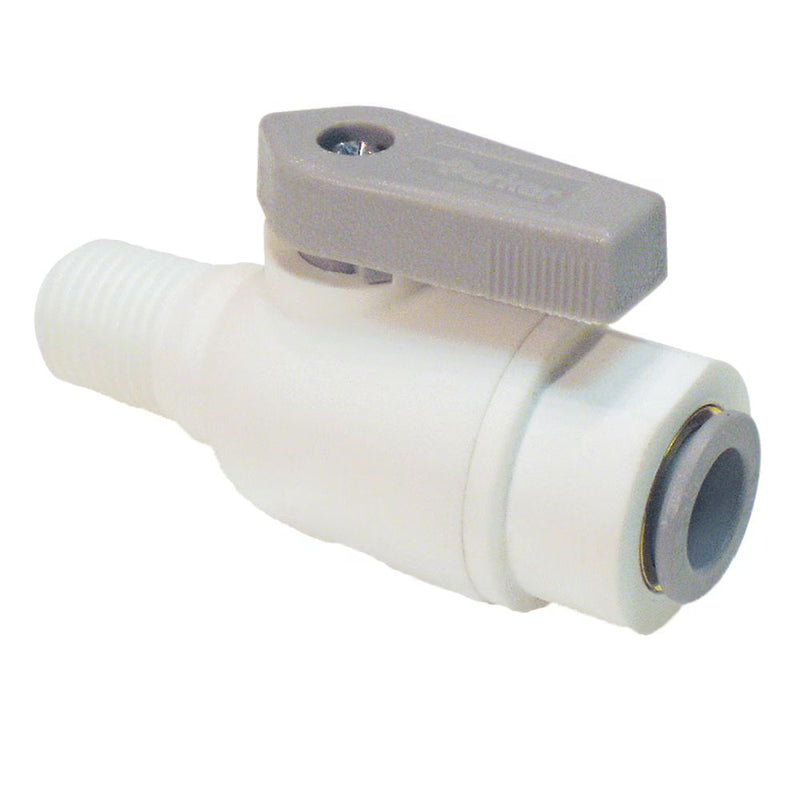

LFPP4VMC4 by Parker | LIQUIfit® Ball Valve | 1/4" Connector x 1/4" Male NPTF Thread | 2.40" Length | 1.4" Width | Straight | Polypropylene

LFPP4VMC4 by Parker | LIQUIfit® Ball Valve | 1/4" Connector x 1/4" Male NPTF Thread | 2.40" Length | 1.4" Width | Straight | Polypropylene

Save $0.33 Save $0.33
$4.97
$4.97 - $4.97
$4.97
$4.64
$4.64 - $4.64
$4.64

by Parker Hannifin
Ball Valves Polypropylene:VMC - Valve Male Connector
Specifications for Variant SKU: LFPP4VMC4 Parker
Brand: LIQUIfit®
Series: VMC Series
Shape (Orientation): Straight
Material(s): Polypropylene
Seal Material(s): EPDM
Special Properties: Food Grade, Corrosion Resistance, Filtration, Valved
Product Features:
  • Wide chemical acceptance range
  • Bi-directional flow maximizes productivity
  • Full flow reduces pressure drop across valve
  • EPDM Seals – LIQUIfit, TrueSeal, and Par-barb
  • Nitrile Seals – Fast and Tite
  • Push-in and barbed connections
  • Meets FDA and NSF/ANSI 51 requirements for food contact
  • LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:
  • Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting.
  • Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:
  • LFPP – LIQUIfit
  • PP – TrueSeal
  • PBPP – Par-Barb
  • FTPPB - Fast and Tite
Specification:
Temperature Range: 35° to +200° F (+1.7° to +93.3° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Nom. Tube OD NPTF Thread Size A B C D ØE Thru Hole Min
LFPP4VMC4 1/4" 1/4" 2.40" 1.21" 1.4" .50" .19"
LFPP4VMC6 1/4" 3/8" 2.40" 1.21" 1.4" .50" .19"
LFPP4VMC8 1/4" 1/2" 2.59" 1.21" 1.4" .50" .19"
LFPP6VMC2 3/8" 1/8" 2.33" 1.32" 1.4" .50" .25"
LFPP6VMC4 3/8" 1/4" 2.51" 1.32" 1.4" .50" .25"
LFPP6VMC6 3/8" 3/8" 2.51" 1.32" 1.4" .50" .25"
LFPP6VMC8 3/8" 1/2" 2.70" 1.32" 1.4" .50" .25"
LFPP8VMC8 1/2" 1/2" 3.14" 1.74" 1.4" .50" .37"
