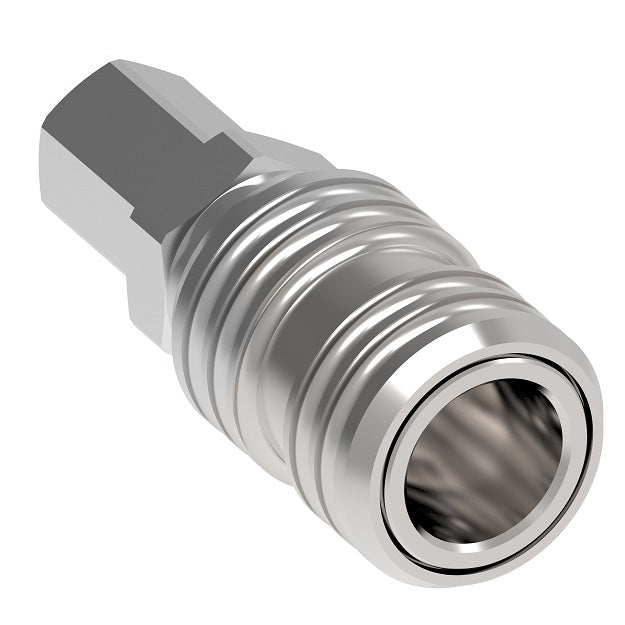

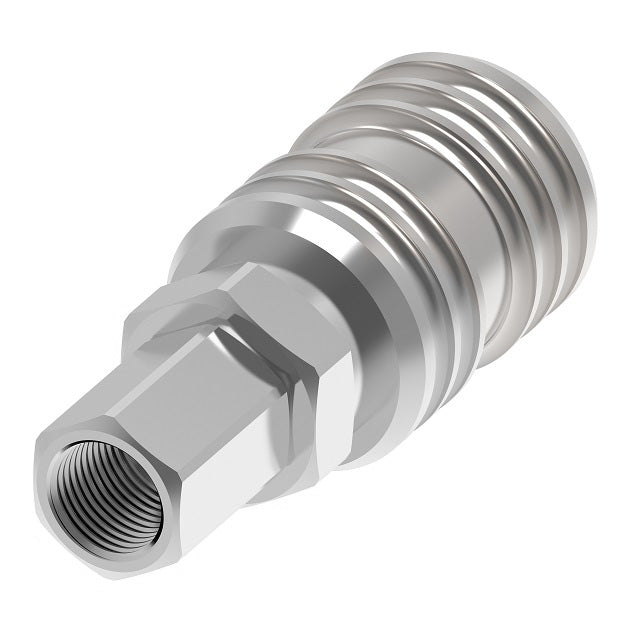

LL1000 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | NBR Seal | Stainless steel
LL1000 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | NBR Seal | Stainless Steel
LL1000 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | NBR Seal | Stainless Steel
LL1000 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | NBR Seal | Stainless steel

LL1000 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series | 1/4" Female NPTF x 1/4" Body Size | Socket | NBR Seal | Stainless Steel

$78.20 - $78.20
$78.20
$78.20 - $78.20
$78.20

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 1000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
Specifications for Variant SKU: LL1000 Danfoss
Brand: Hansen
Series: 1000 Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
1000 1/4" 138 bar 2,000 psi 552 bar 8,000 psi 9 lpm 179 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
1000 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex C D Hex
800E Socket/Female 1/4" 1/8" 1/8-27 Female NPTF Brass 1 1.86"
(47.24mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)		 - - -
1000E Socket/Female 1/4" 1/4" 1/4-18 Female NPTF Brass 1 2.08"
(52.83mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)		 - - -
1200 Socket/Female 1/4" 3/8" 3/8-18 Female NPTF Brass 1 2.16"
(54.86mm)		 1.00"
(25.40mm)		 0.75"
(19.05mm)		 - - -
LL1000 Socket/Female 1/4" 1/4" 1/4-18 Female NPTF Stainless Steel 1 2.08"
(52.83mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)		 - - -
1000 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex C D Hex
11 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 - - - 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
11G*** Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 - - - 2.44"
(61.98mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
13 Plug/Male 1/4" 1/8" 1/8-27 Male NPTF Steel 2 - - - 1.47"
(37.34mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
15E Plug/Male 1/4" 3/8" 3/8-18 Male NPTF Steel 2 - - - 1.69"
(42.93mm)		 0.94"
(23.88mm)		 0.81"
(20.57mm)
11B Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Brass 2 - - - 1.63"
(41.40mm)		 0.78"
(19.81mm)		 0.69"
(17.53mm)
LL11 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Stainless Steel 2 - - - 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
11NK Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Nickel Plated Steel 2 - - - 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
***With Bleeder Ball Check - Reduces Hose Whip
