| Product Features: |
- Self-sealing poppet valves provide excellent high and low pressure sealing.
- 303/316 Stainless steel construction for greater corrosion resistance and fluid compatibility
|
| Applications & Markets: |
- Agriculture
- Hydraulic Tool
- General Industry
- Construction
- Fluid Transfer
- Transportation
- Military
- Law Enforcement/Rescue
- Chemical
- Oil and Gas
- Consumer Products
- HVAC
- Food and Beverage
- Trucks
- Aerospace
- Medical
|
| ISO Standard: |
- Meets dimensional requirements to ISO standard 7241-1 Series B.
|
| Materials: |
- Standard body material: 303 or 316 Stainless Steel.
- Standard seal material: Nitrile (NBR) (40°F to +250°F | -40°C to +121°C)
|
| European Pressure Equipment Directive: |
- Couplings with nominal diameters up to and including 25mm are designed and manufactured under Article 4.3 of the European Pressure Equipment Directive 2014/68/EU. Couplings with
nominal diameters greater than 25 mm are designed and manufactured in accordance with stipulations of Module A of the European Pressure Equipment Directive 2014/68/EU. They should
not be used to convey unstable gases.
|
Group 1 = Hazardous media / Group 2 = Other media
| Series |
Body Size |
ISO Size |
Nominal Flow
Diameter |
Max. Operating
Pressure |
Rated
Flow* |
Air
Inclusion |
Fluid
Loss |
Non Hazardous
Liquids & Gases
(Group 2) |
Hazardous
Liquids & Gases
(Group 1) |
| in. |
mm |
mm |
bar |
psi |
bar |
psi |
lpm |
gpm |
cc.max. |
cc.max. |
| 1HK |
1/8" |
5mm |
4.4mm |
344 bar |
5,000 psi |
344 bar |
5,000 psi |
3 lpm |
0.8 gpm |
0.6 cc.max. |
0.5 cc.max. |
| 2HK |
1/4" |
6.3mm |
5.9mm |
255 bar |
3,700 psi |
255 bar |
3,700 psi |
12 lpm |
3 gpm |
1.2 cc.max. |
0.9 cc.max. |
| 3HK |
3/8" |
10mm |
7.8mm |
255 bar |
3,700 psi |
255 bar |
3,700 psi |
23 lpm |
6 gpm |
2.9 cc.max. |
2.1 cc.max. |
| 4HK |
1/2" |
12.5mm |
10mm |
293 bar |
4,250 psi |
293 bar |
4,250 psi |
45 lpm |
12 gpm |
3.6 cc.max. |
3.5 cc.max. |
| 6HK |
3/4" |
20mm |
17mm |
242 bar |
3,500 psi |
242 bar |
3,500 psi |
100 lpm |
26 gpm |
11.5 cc.max. |
9.3 cc.max. |
| 8HK |
1" |
25mm |
19.6mm |
207 bar |
3,000 psi |
207 bar |
3,000 psi |
189 lpm |
50 gpm |
18.0 cc.max. |
16.9 cc.max. |
| 10HK |
1-1/4"** |
- |
26.7mm |
118 bar |
1,700 psi |
37 bar |
537 psi |
288 lpm |
76 gpm |
48.0 cc.max. |
48.0 cc.max. |
| 12HK |
1-1/2" |
40mm |
35.1mm |
152bar |
2,200 psi |
29 bar |
421 psi |
375 lpm |
99 gpm |
91.3 cc.max. |
91.3 cc.max. |
| 20HK |
2-1/2" |
50mm |
46mm |
104bar |
1,500 psi |
21 bar |
305 psi |
757 lpm |
200 gpm |
209.9 cc.max. |
209.9 cc.max. |
For questions related to vacuum please contact Danfoss.
** No ISO Standard available for the 10HK
| HK10/12/20 Series |
|
Plugs (Male) (Figure 2) |
Part Number
303 Stainless Steel |
Body Size |
ISO
Size |
Type |
Female
Thread |
Figure |
Dimensions |
| FKM Seal |
A |
B |
Hex |
C |
D |
E |
Hex |

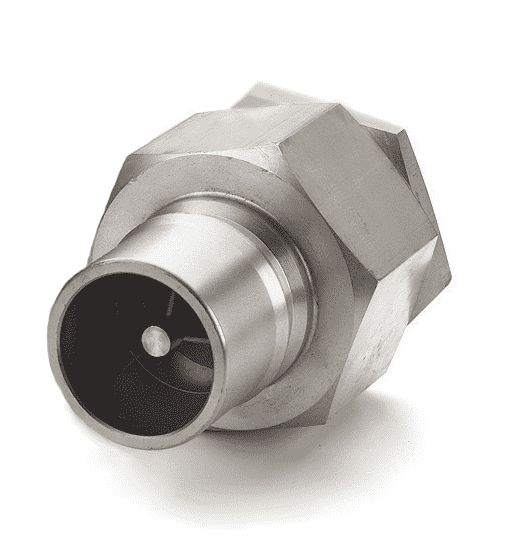

| LL12K46143 |
1-1/2" |
40mm |
Plug/Male |
1-1/2-11-1/2 Fem. NPTF |
2 |
- |
- |
- |
4.76"
(120.9mm) |
2.74"
(69.6mm) |
2.67"
(67.8mm) |
2.38"
(60.5mm) |
* ISO 7241-1 Series B does not include 1-1/4 inch body size couplings; therefore, Series 10HK is not covered by this standard
A=Overall Length, B=Maximum Diameter
C=Overall Length, D=Maximum Diameter, E=Exposed Length when Connected
To obtain connected length of coupling, add dimensions A (Fig. 1) and E (Fig. 2) together.
To obtain connected length of coupling, add dimensions A (Fig. 3) and E (Fig. 4) together.
