LLRD-MM06X200 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Red | 200ft Length

Name: LLRD-MM06X200 Piranha® by Kuriyama | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | 3/8" ID | 0.65" OD | 3/8" Male NPTF x 3/8" Male NPTF | Red | 200ft Length
Brand: Kuriyama
SKU: LLRD-MM06X200 Kuriyama
Price: 325.96 USD
Availability: InStock

Save $85.18

$411.14

$411.14 - $411.14

$411.14

$325.96

$325.96 - $325.96

$325.96

Kuriyama
Piranha® | LLRD Series | Jetting Line Hose Assembly | 5000 PSI | Red Cover

Used for jetting equipment in commercial, industrial and residential environments.

Made in the USA.

Specifications for Variant SKU: LLRD-MM06X200 Kuriyama
Brand:	Piranha
Series:	LLRD Series
Hose Color(s):	Red
Internal Diameter:	0.375in - 3/8in
Outer Diameter:	0.65in
Cover Construction:	Polyurethane
Shape (Orientation):	Straight

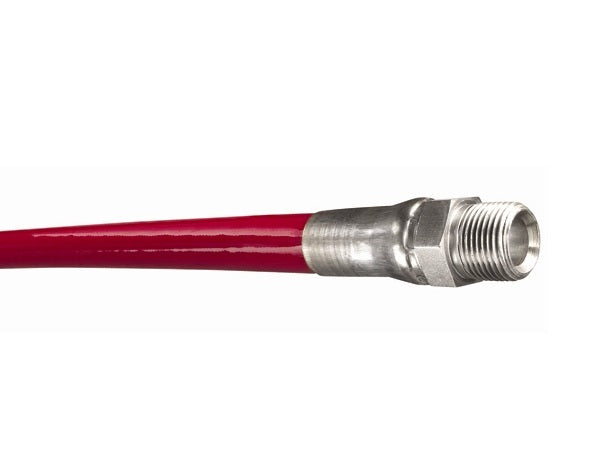

Ends Configuration:	3/8in Male NPTF, 3/8in Male NPTF, Some Ends Match

SPECIFICATIONS

Other Features:
Applications:	Jetting/Lateral Line - Used for jetting equipment in commercial, industrial and residential environments.

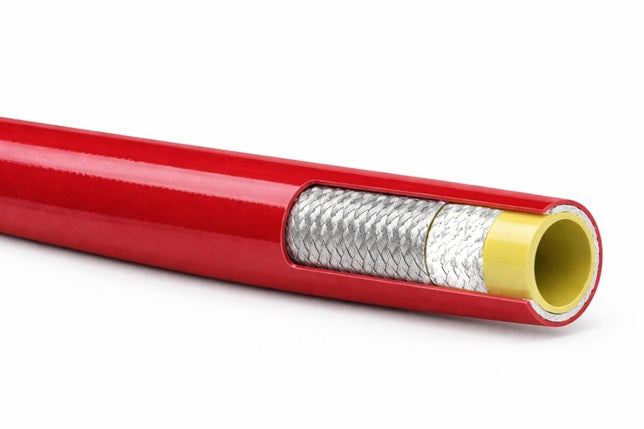

Tube:	Yellow seamless thermoplastic tube.	Reinforcement:	Double high tensile synthetic fiber braid.
Cover:	Abrasion resistant red polyurethane.	Service Temperature Range:	-40°F (-40°C) to +150°F (+66°C)
Specifications:	-
Materials - Constructed to provide rugged and reliable service under the most severe and demanding conditions. Yellow Color Tube - Assures the user that they are using a WASTEC designated Piranha Hose Product. Seamless Thermoplastic Tube - Provides maximum resistance to hydrolysis. High Tensile One or Two Synthetic Fiber Braids - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption. Abrasion Resistant Polyurethane - Polyurethane cover provides exceptional cut, abrasion and fungus resistance. End Fittings - Hoses are assembled Male x Male NPT threads as a standard. Pressure Testing - All Piranha Sewer Hoses are 100% pressure tested.

Part Number Male x Male NPTF	ID		OD		Max. Working Pressure		Min. Burst Pressure		Min. Bend Radius		Length	Weight
Part Number Male x Male NPTF	(in)	(mm)	(in)	(mm)	(psi)	(bar)	(psi)	(bar)	(in)	(mm)	(ft)	(lbs/ft)
LLRD-MM04X50	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	50ft	0.05 lbs
LLRD-MM04X100	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	100ft	0.05 lbs
LLRD-MM04X150	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	150ft	0.05 lbs
LLRD-MM04X200	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	200ft	0.05 lbs
LLRD-MM04X300	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	300ft	0.05 lbs
LLRD-MM04X600	1/4"	6.4mm	0.50"	12.6mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	2.50"	63.5mm	600ft	0.05 lbs

LLRD-MM06X100	3/8"	9.7mm	0.65"	16.5mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	3.00"	76.2mm	100ft	0.13 lbs
LLRD-MM06X150	3/8"	9.7mm	0.65"	16.5mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	3.00"	76.2mm	150ft	0.13 lbs
LLRD-MM06X200	3/8"	9.7mm	0.65"	16.5mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	3.00"	76.2mm	200ft	0.13 lbs
LLRD-MM06X300	3/8"	9.7mm	0.65"	16.5mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	3.00"	76.2mm	300ft	0.13 lbs
LLRD-MM06X600	3/8"	9.7mm	0.65"	16.5mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	3.00"	76.2mm	600ft	0.13 lbs

LLRD-MM08X300	1/2"	12.8mm	0.80"	20.2mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	4.00"	101.6mm	300ft	0.13 lbs
LLRD-MM08X500	1/2"	12.8mm	0.80"	20.2mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	4.00"	101.6mm	500ft	0.13 lbs
LLRD-MM08X600	1/2"	12.8mm	0.80"	20.2mm	5000 PSI	344.7 bar	12500 PSI	861.8 bar	4.00"	101.6mm	600ft	0.13 lbs
