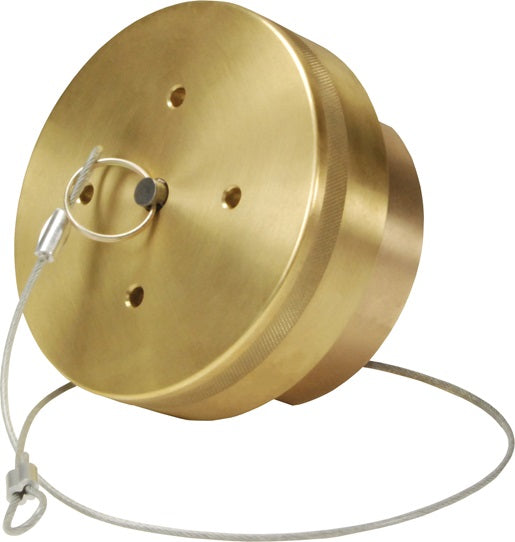

LNG30BRFE by Dixon Valve | Liquid Natural Gas Coupling | 3" Size | LNG30 Fixed End With 3" Female NPT Thread / Cap & Retaining Cable | Brass
LNG30BRFE by Dixon Valve | Liquid Natural Gas Coupling | 3" Size | LNG30 Fixed End With 3" Female NPT Thread / Cap & Retaining Cable | Brass
LNG30BRFE by Dixon Valve | Liquid Natural Gas Coupling | 3" Size | LNG30 Fixed End With 3" Female NPT Thread / Cap & Retaining Cable | Brass

LNG30BRFE by Dixon Valve | Liquid Natural Gas Coupling | 3" Size | LNG30 Fixed End With 3" Female NPT Thread / Cap & Retaining Cable | Brass

Save $137.10 Save $137.10
$1,233.90
$1,233.90 - $1,233.90
$1,233.90
$1,096.80
$1,096.80 - $1,096.80
$1,096.80

Dixon Valve
Liquid Natural Gas Coupling | Fixed End

For safe and reliable transfer of cryogenic liquefied natural gas (LNG) products to transport equipment such as cargo tanks, portable tanks, and liquefied natural gas liquid production facilities.
Specifications for Variant SKU: LNG30BRFE Dixon
Material(s): Brass
Features:
  • Fixed end design threads on tank truck pipe connection line, manifold, pipe outlet, or pipe connection.
  • PTFE gasket reduces force needed to make a tight connection.
  • Connect by hammering the acme threaded nut onto a fixed end.
  • Hose end designed female NPT thread attached to hose end.
  • Snap ring keeps connection nut in place for easier connecting.
  • Hose end lugs intended to be struck with a non-sparking hammer or similar non-sparking device.
Construction:
  • Body: Brass
  • Seal: PTFE
Specifications:
  • Meets CGA V-6 LNG-30 guidelines.
  • Compatible with LNG couplings made to CGA guidelines.
  • Temperature as low as -320°F (-196°C) at standard LNG transfer pressures.
  • 450 PSI working pressure with 4 to 1 safety factor

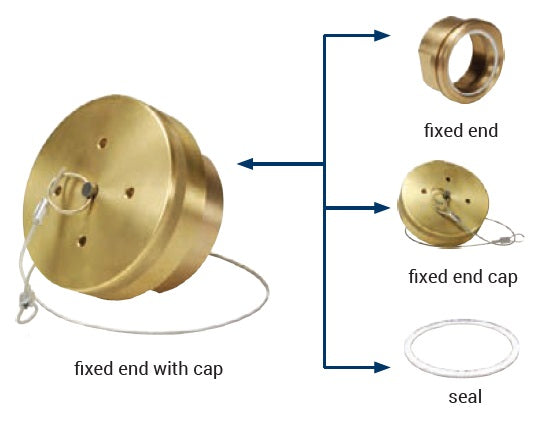

Part Size Description
LNG20BRFE 2" LNG30 Fixed End With 2" Female NPT Thread / Cap & Retaining Cable
LNG30BRFE 3" LNG30 Fixed End With 3" Female NPT Thread / Cap & Retaining Cable
LNG30BRFE-NC 3" LNG30 Fixed End With 3" Female NPT Thread
LNG30FESEAL 3" LNG30 PTFE Seal
LNGBRFECAP - Cap for LNG30BRFE and LNG20BRFE
