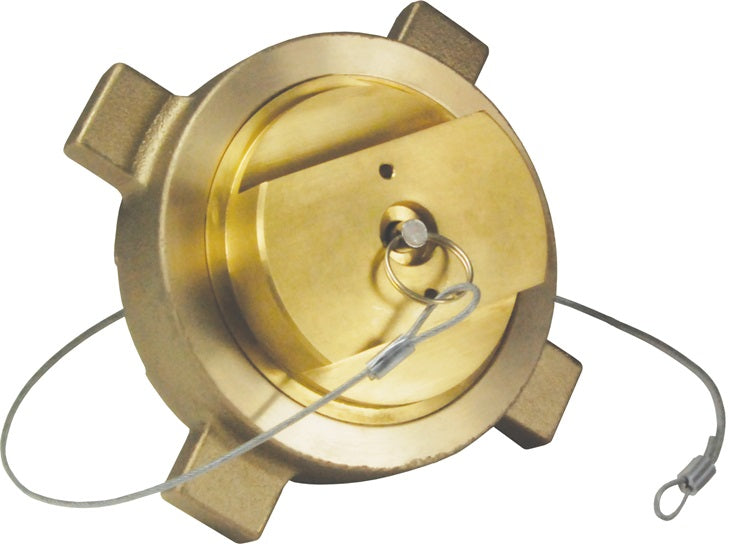

LNG30BRHE by Dixon Valve | Liquid Natural Gas Coupling | 3" Size | LNG30 Hose End With 3" Female NPT Thread / With Plug & Retaining | Brass
LNG30BRHE by Dixon Valve | Liquid Natural Gas Coupling | 3" Size | LNG30 Hose End With 3" Female NPT Thread / With Plug & Retaining | Brass
LNG30BRHE by Dixon Valve | Liquid Natural Gas Coupling | 3" Size | LNG30 Hose End With 3" Female NPT Thread / With Plug & Retaining | Brass

LNG30BRHE by Dixon Valve | Liquid Natural Gas Coupling | 3" Size | LNG30 Hose End With 3" Female NPT Thread / With Plug & Retaining | Brass

Save $1,020.16 Save $1,020.16
$2,550.40
$2,550.40 - $2,550.40
$2,550.40
$1,530.24
$1,530.24 - $1,530.24
$1,530.24

Dixon Valve
Liquid Natural Gas Coupling | Hose End

For safe and reliable transfer of cryogenic liquefied natural gas (LNG) products to transport equipment such as cargo tanks, portable tanks, and liquefied natural gas liquid production facilities.
Specifications for Variant SKU: LNG30BRHE Dixon
Material(s): Brass
Features:
  • Fixed end design threads on tank truck pipe connection line, manifold, pipe outlet, or pipe connection.
  • PTFE gasket reduces force needed to make a tight connection.
  • Connect by hammering the acme threaded nut onto a fixed end.
  • Hose end designed female NPT thread attached to hose end.
  • Snap ring keeps connection nut in place for easier connecting.
  • Hose end lugs intended to be struck with a non-sparking hammer or similar non-sparking device.
Construction:
  • Body: Brass
  • Seal: PTFE
Specifications:
  • Meets CGA V-6 LNG-30 guidelines.
  • Compatible with LNG couplings made to CGA guidelines.
  • Temperature as low as -320°F (-196°C) at standard LNG transfer pressures.
  • 450 PSI working pressure with 4 to 1 safety factor
Part Size Description

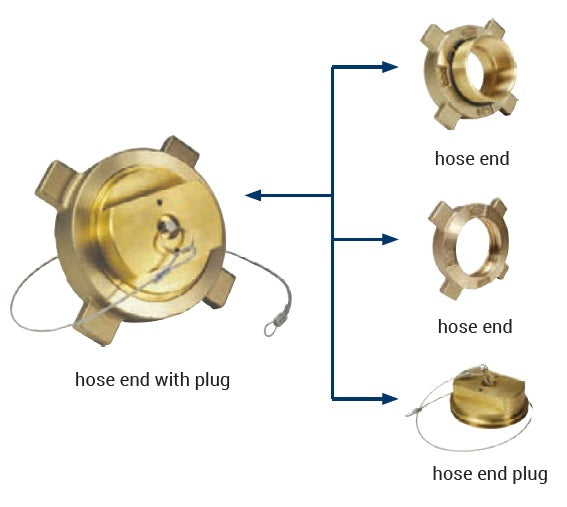

LNG20BRHE 2" LNG30 Hose End With 2" Female NPT Thread / With Plug & Retaining
LNG30BRHE 3" LNG30 Hose End With 3" Female NPT Thread / With Plug & Retaining
LNG20BRHE-NC 2" LNG20 Hose End With 2" Female NPT Thread
LNG30BRHE-NC 3" LNG30 Hose End With 3" Female NPT Thread
LNG30BRHENUT 3" LNG30 Swivel Nut
LNGBRHEPLUG - Plug for LNG30BRHE and LNG20BRHE
