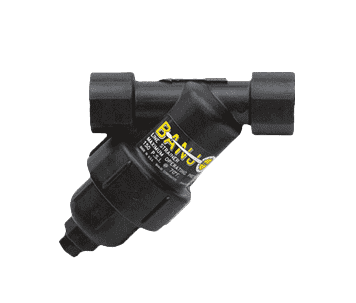

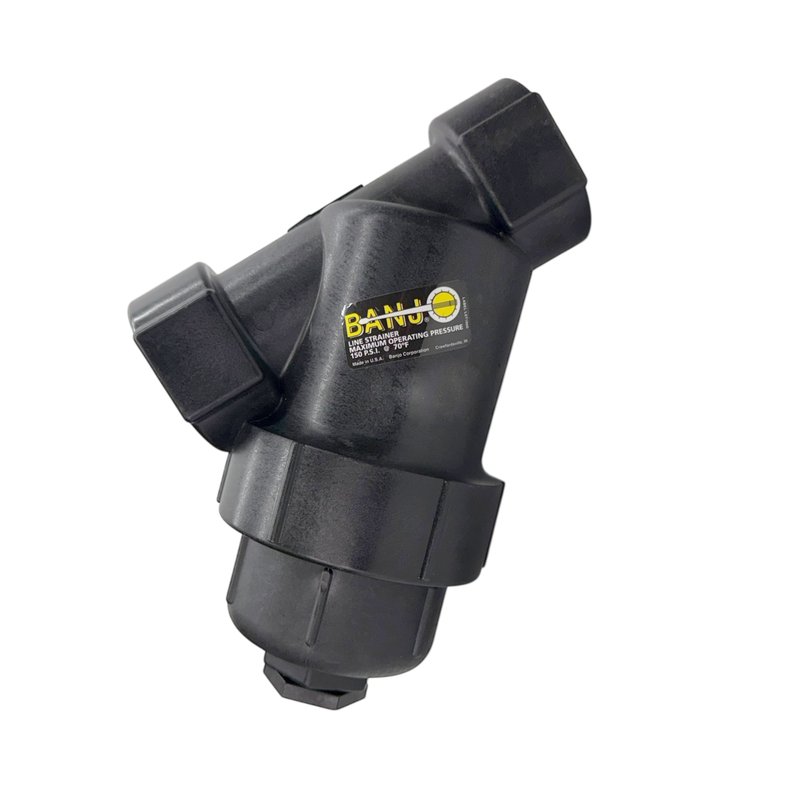

LS150-50 Banjo Polypropylene Y Strainer - 1-1/2" x 1-1/2" Female NPT with 50 Mesh Stainless Steel Screen - 150 PSI

LS150-50 by Banjo | Line Y Strainer | 1-1/2" x 1-1/2" Female NPT with 50 Mesh Stainless Steel Screen | 150 PSI | Polypropylene

Save $7.17 Save $7.17
$64.53
$64.53 - $64.53
$64.53
$57.36
$57.36 - $57.36
$57.36

Banjo Line Strainers - Y Line Strainers - 1-1/2" Female NPT - with Stainless Steel Screens - Polypropylene
Specifications for Variant SKU: LS150-50 Banjo
Applications:
  • Fluids
  • Agriculture
  • Industrial

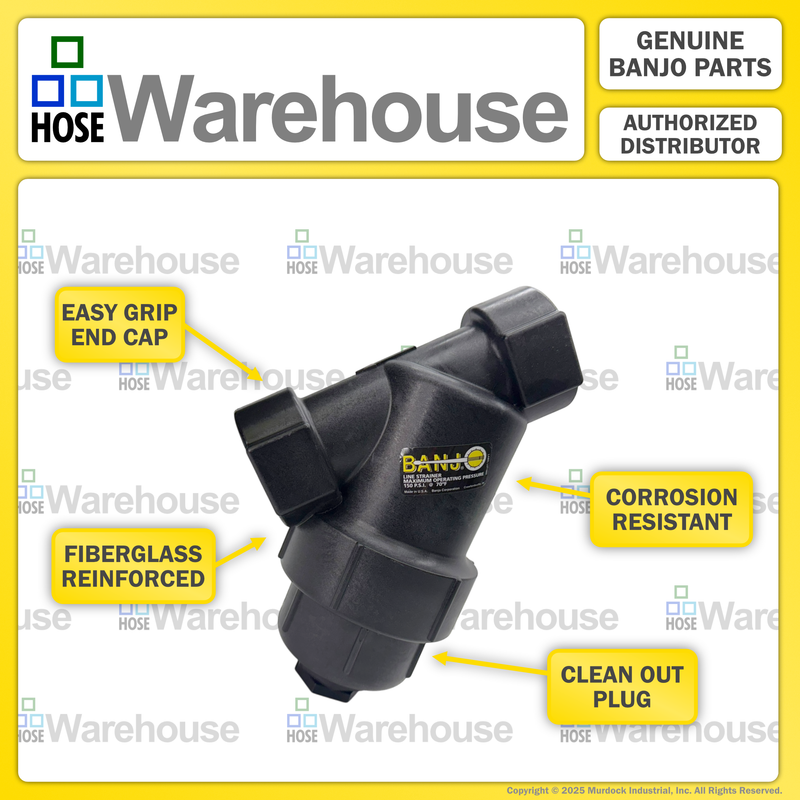

Features:
  • Precision molded construction
  • Corrosion resistant
  • Lightweight
  • Fiberglass reinforced
  • Easy grip end cap
  • Poly ribbed 316 stainless steel screen.
  • EPDM gaskets FKM (viton type) available
  • Heavy duty end cap threads
  • Clean-out plug
  • Female NPT x Female NPT

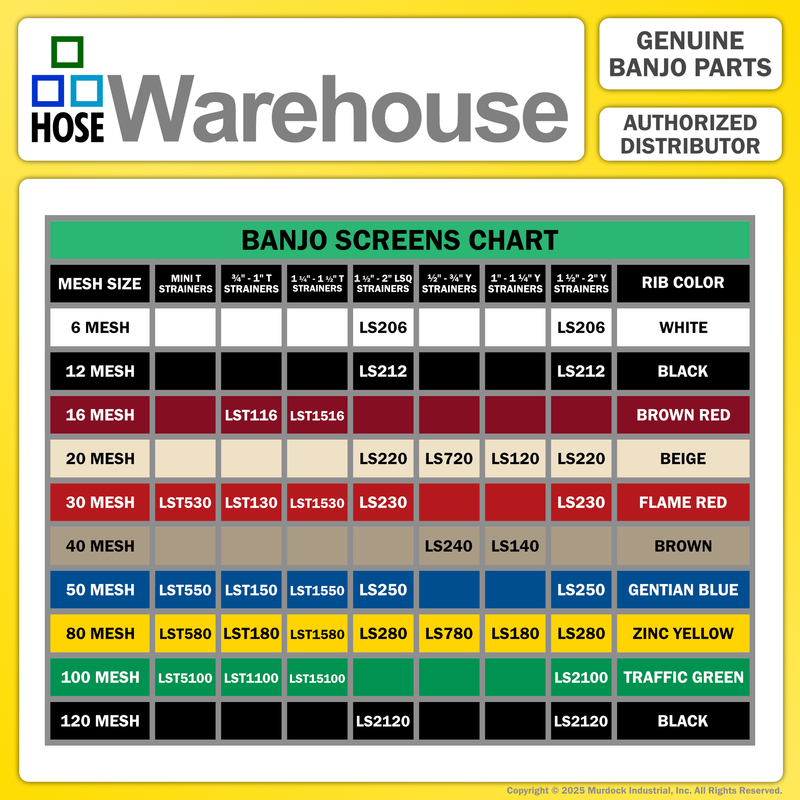

  • Convenient color coded screens for easy mesh size identification. (Refer to chart below)
Other Data:
Screens Standard Meshes & Data (For General Use Only)
Mesh Size Rib Color Microns Wire Diameter Opening % Open Area
6 Mesh White 3360 .035 .132 62.7
12 Mesh Black 1680 .023 .060 51.8
20 Mesh Beige 841 .016 .034 46.2
30 Mesh Flame Red 595 .012 .021 40.8
50 Mesh Gentian Blue 297 .009 .011 30.3
80 Mesh Zinc Yellow 177 .0055 .007 31.4
120 Mesh Black 116 .0037 .0046 30.5
Part Number Description Max PSI
LS150-06 1-1/2" x 1-1/2" Female NPT with 6 Mesh Screen 150 PSI
LS150-12 1-1/2" x 1-1/2" Female NPT with 12 Mesh Screen 150 PSI
LS150-20 1-1/2" x 1-1/2" Female NPT with 20 Mesh Screen 150 PSI
LS150-30 1-1/2" x 1-1/2" Female NPT with 30 Mesh Screen/ 150 PSI
LS150-50 1-1/2" x 1-1/2" Female NPT with 50 Mesh Screen 150 PSI
LS150-80 1-1/2" x 1-1/2" Female NPT with 80 Mesh Screen 150 PSI
LS150-120 1-1/2" x 1-1/2" Female NPT with 120 Mesh Screen 150 PSI
Replacement Parts for 1-1/2" - 2" Y Strainers
Item Part Number Description Quantity Required
1 LS150-C* 1-1/2" - 2" End Cap 1
2 LS150-G 1-1/2" - 2" O-Ring 1
2 LS150-GV 1-1/2" - 2" FKM (viton type) Gasket 1
3 LSQ200-PL 1" Drain Plug (Fits 1-1/2" - 2") 1
4 LSQ200-R 1-1/2" - 2" EPDM O-Ring for Drain Plug 1
4 LSQ200-RV 1-1/2"-2" FKM (viton type) O-Ring for Drain Plug 1
5 LS206 1-1/2" - 2" 6 Mesh Screen 1
5 LS212 1-1/2" - 2" 12 Mesh Screen 1
5 LS220 1-1/2" - 2" 20 Mesh Screen 1
5 LS230 1-1/2" - 2" 30 Mesh Screen 1
5 LS250 1-1/2" - 2" 50 Mesh Screen 1
5 LS280 1-1/2" - 2" 80 Mesh Screen 1
5 LS2100 1-1/2" - 2" 100 Mesh Screen 1
5 LS2120 1-1/2" - 2" 120 Mesh Screen 1
5 LS2150 1-1/2" - 2" 150 Mesh Screen 1
5 LS220P 1-1/2" - 2" 20 Mesh All Poly Screen 1
7 LS141G 1-1/2" - 2" EPDM O-Ring 1
Not Shown LS150B/C 1-1/2" Y Body, Cap & Gasket 1
Not Shown LS200B/C 2" Y Body, Cap & Gasket 1

NOTE: Items marked with asterisk* include parts 1, 3, and 4.
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
