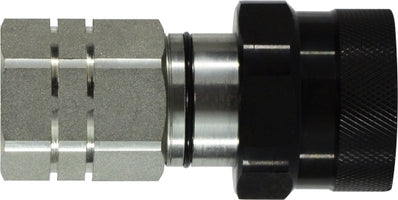

LSQVEP34SF (LSQ-VEP-34-SF) Midland Hydraulic Quick Disconnect - Flat Face VEP Thread Lock Female Coupler - 3/4" Body Size - 3/4" Female NPT - Steel

LSQVEP34SF by Midland | Hydraulic Quick Disconnect | Flat Face VEP Thread Lock Female Coupler | 3/4" Body Size | 3/4" Female NPT | Steel

Save $140.01

$350.03

$350.03 - $350.03

$350.03

$210.02

$210.02 - $210.02

$210.02

Midland Industries
Hydraulic Quick Disconnects: Flat Face VEP Thread Lock - Steel

Applications:
- Widely used in public equipment.
- Portable construction equipment.
- Hydraulic tools.
- Vehicles

Inventory @ Manufacturers Warehouse: 3 Units

Specifications for Variant SKU: LSQVEP34SF Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female VEP Flat Face QD Interchange, 3/4in Female NPT
Material(s):	Steel
Seal Material(s):	NBR

Features:
Standard seal material is NBR New valve design provides better resistance from high flow and the pressure of impulse, thus providing advanced performance. Special nipple design for connecting under pressure, allows connection and disconnection with high residual pressures. The LSQ-VEP series employs a threaded sleeve locking mechanism, mates with matching male threads on the coupler. New plating treatment provides advanced anti-rust performance. LSQ-VEP series couplings employ flush valving when connecting or disconnecting, therefore only a small amount of fluid can be lost during disconnecting or air inclusion during reconnection. The Anti-Blowout bonded seal is designed to prevent blow-out or damage during severe service conditions. Machined form solid steel barstock for durability. Compatible with most other VEP series. Test Fluid-Oil = 200 SUS. Temperature Range -20°C +120°C

Flat Face VEP Thread Lock Female Coupler								Flat Face VEP Thread Lock Female Plug


Part Number	Body Size	Female NPT	LS	D	A	Rated Pressure	Rated Flow	Part Number	Body Size	Female NPT	LP	D	A	Rated Pressure	Rated Flow
LSQVEP12SF (LSQ-VEP-12-SF)	1/2"	1/2"	4.09"	1.13"	0.67"	7000 PSI	12 GPM	LSQVEP12PF (LSQ-VEP-12-PF)	1/2"	1/2"	4.09"	1.13"	0.67"	7000 PSI	12 GPM
LSQVEP34SF (LSQ-VEP-34-SF)	3/4"	3/4"	4.49"	2.13"	0.79"	7000 PSI	50 GPM	LSQVEP34PF (LSQ-VEP-34-PF)	3/4"	3/4"	4.49"	2.13"	0.79"	7000 PSI	50 GPM
LSQVEP1SF (LSQ-VEP-1-SF)	1"	1"	5.28"	2.33"	0.83"	6000 PSI	88 GPM	LSQVEP1PF (LSQ-VEP-1-PF)	1"	1"	5.28"	2.33"	0.83"	6000 PSI	88 GPM
LSQVEP20SF (LSQ-VEP-20-SF)	1-1/4"	1-1/4"	5.71"	2.72"	0.83"	-	-	LSQVEP20PF (LSQ-VEP-20-PF)	1-1/4"	1-1/4"	5.71"	2.72"	0.83"	-	-
LSQVEP24SF (LSQ-VEP-24-SF)	1-1/2"	1-1/2"	7.41"	3.63"	0.83"	5000 PSI	152 GPM	LSQVEP24PF (LSQ-VEP-24-PF)	1-1/2"	1-1/2"	7.41"	3.63"	0.83"	5000 PSI	152 GPM
