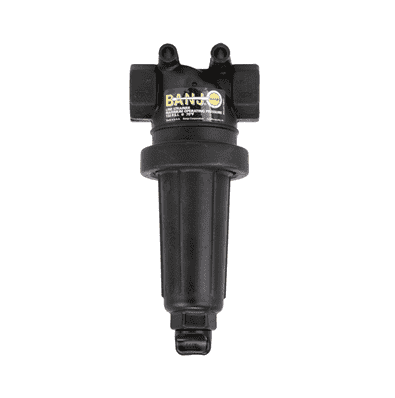

LST100-16 Banjo Polypropylene T Line Strainer - 1" x 1" Female NPT with 16 Mesh Stainless Steel Screen - 150 PSI

LST100-16 by Banjo | T Line Strainer | 1" x 1" Female NPT with 16 Mesh Stainless Steel Screen | 300 PSI | Polypropylene

Save $3.69 Save $3.69
$33.24
$33.24 - $33.24
$33.24
$29.55
$29.55 - $29.55
$29.55

Banjo Line Strainers
"T" Line Strainers with Stainless Steel Screens - 1" x 1" Female NPT - Polypropylene
Specifications for Variant SKU: LST100-16 Banjo
Applications:
  • Fluids
  • Agriculture
  • Industrial
Features:
  • Heavy-duty glass reinforced polypropylene.
  • Clean-out plug
  • 316 stainless steel reinforced screens
  • EPDM gaskets standard
  • 300 PSI Maximum
  • Convenient color coded screens for easy mesh size identification. (Refer to chart below)
Other Data:
Screens Standard Meshes & Data (For General Use Only)
Mesh Size Rib Color Microns Wire Diameter Opening % Open Area
16 Mesh Brown Red 1190 .018 .044 50.7
30 Mesh Flame Red 595 .012 .021 40.8
50 Mesh Gentian Blue 297 .009 .011 30.3
80 Mesh Zinc Yellow 177 .0055 .007 31.4
100 Mesh Traffic Green 149 .0045 .005 30.3
Part Number Description
LST100-16 1" x 1" Female NPT with 16 Mesh Stainless Steel Screen
LST100-30 1" x 1" Female NPT with 30 Mesh Stainless Steel Screen
LST100-30V 1" x 1" Female NPT with 30 Mesh Stainless Steel Screen - FKM
LST100-50 1" x 1" Female NPT with 50 Mesh Stainless Steel Screen
LST100-80 1" x 1" Female NPT with 80 Mesh Stainless Steel Screen
LST100-100 1" x 1" Female NPT with 100 Mesh Stainless Steel Screen
Replacement Parts for LST075 & LST100
Item Part Number Description Quantity Required
1 LST100-B* 3/4" & 1" Bowl 1
2 LST100-G 3/4" & 1" EPDM Gasket 1
2 LST100-GV 3/4" & 1" FKM (viton type) Gasket 1
3 12777 1/2" Plug 1
4 UV15163 EPDM O-Ring for Clean Out Plug 1
4 UV15163V FKM (viton type) O-Ring for Clean Out Plug 1
5 LST116 16 Mesh Screen 1
5 LST130 30 Mesh Screen 1
5 LST150 50 Mesh Screen 1
5 LST180 80 Mesh Screen 1
5 LST1100 100 Mesh Screen 1
6 LST075-H 3/4" Strainer Head 1
6 LST100-H 1" Strainer Head 1
7 13778 O-Ring 1
Not Shown LST075-HB 3/4" Strainer Head, Bowl & Gasket 1
Not Shown LST100-HB 1" Strainer Head, Bowl & Gasket 1

NOTE: Items marked with asterisk* include parts 1, 3 and 4.
