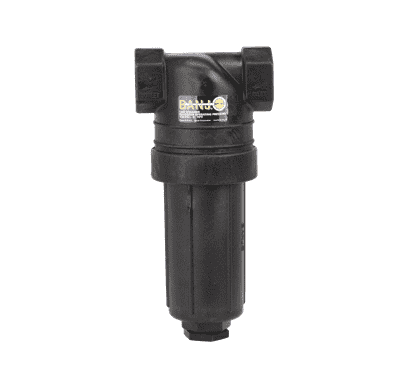

LST125-30 Banjo Polypropylene T Line Strainer - 1-1/4" x 1-1/4" Female NPT with 30 Mesh Stainless Steel Screen - 150 PSI

LST125-30 by Banjo | T Line Strainer | 1-1/4" x 1-1/4" Female NPT with 30 Mesh 316 Stainless Steel Screen | Gasket: EPDM | 300 PSI | Polypropylene

Save $39.44 Save $39.44
$98.60
$98.60 - $98.60
$98.60
$59.16
$59.16 - $59.16
$59.16

Banjo Line Strainers - "T" Line Strainers with Stainless Steel Screens - 1-1/4" x 1-1/4" Female NPT - Polypropylene
Specifications for Variant SKU: LST125-30 Banjo
Applications:
  • Fluids
  • Agriculture
  • Industrial
Features:
  • Heavy-duty glass reinforced polypropylene.
  • Clean-out plug
  • 316 stainless steel reinforced screens
  • EPDM gaskets standard
  • 300 PSI Maximum
  • Convenient color coded screens for easy mesh size identification. (Refer to chart below)
Other Data:
Screens Standard Meshes & Data (For General Use Only)
Mesh Size Rib Color Microns Wire Diameter Opening % Open Area
16 Mesh Brown Red 1190 .018 .044 50.7
30 Mesh Flame Red 595 .012 .021 40.8
50 Mesh Gentian Blue 297 .009 .011 30.3
80 Mesh Zinc Yellow 177 .0055 .007 31.4
100 Mesh Traffic Green 149 .0045 .005 30.3

    Part Number Description
    LST125-16 1-1/4" x 1-1/4" Female NPT with 16 Mesh Stainless Steel Screen
    LST125-30 1-1/4" x 1-1/4" Female NPT with 30 Mesh Stainless Steel Screen
    LST125-50 1-1/4" x 1-1/4" Female NPT with 50 Mesh Stainless Steel Screen
    LST125-80 1-1/4" x 1-1/4" Female NPT with 80 Mesh Stainless Steel Screen

    Replacement Parts for LST125 & LST150
    Item Part Number Description Quantity Required
    1 LST150-B* 1-1/4" & 1-1/2" Bowl 1
    2 LST150-G 1-1/4" & 1-1/2" EPDM Gasket 1
    2 LST150-GV 1-1/4" & 1-1/2" FKM (viton type) Gasket 1
    3 LSQ200-PL 1" Clean Out Plug 1
    4 LSQ200-R EPDM O-Ring for Clean Out Plug 1
    4 LSQ200-RV FKM (viton type) O-Ring for Clean Out Plug 1
    5 LST1516 16 Mesh Screen 1
    5 LST1530 30 Mesh Screen 1
    5 LST1550 50 Mesh Screen 1
    5 LST1580 80 Mesh Screen 1
    5 LST15100 100 Mesh Screen 1
    7 LST034G EPDM O-Ring for Screen 1
    Not Shown LST125-HB 1-1/4" Strainer Head, Bowl & Gasket 1
    Not Shown LST150-HB 1-1/2" Strainer Head, Bowl & Gasket 1

    NOTE: Items marked with asterisk* include parts 1, 3 and 4.

    Banjo

    Banjo

    Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
