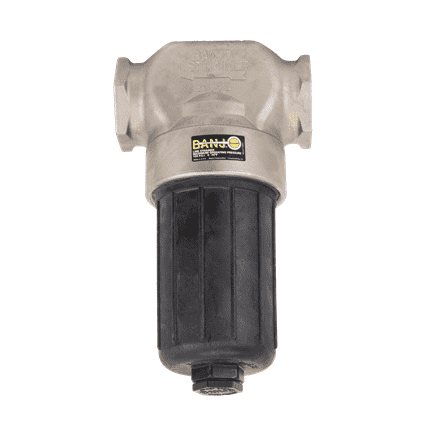

LST200-50SS Banjo Polypropylene / 316 Stainless Steel Combo T Line Strainer - 2" x 2" Female NPT with 50 Mesh Screen - 150 PSI

LST200-50SS by Banjo | T Line Strainer | 2" x 2" Female NPT with 50 Mesh Screen | 300 PSI | Polypropylene / 316 Stainless Steel Combo

Save $118.04 Save $118.04
$759.20
$759.20 - $759.20
$759.20
$641.16
$641.16 - $641.16
$641.16

Banjo Line Strainers - 2" "T" Line Strainer - Female NPT - Poly/Stainless Combo
Specifications for Variant SKU: LST200-50SS Banjo
Applications:
  • Fluids
  • Agriculture
  • Industrial
Features:
  • 316 stainless steel head
  • Glass reinforced polypropylene bowl
  • Clean-out plug
  • 316 stainless steel reinforced screens
  • FKM (viton type) gaskets
  • Convenient color coded screens for easy mesh size identification. (Refer to chart below)
Other Data:
Screens Standard Meshes & Data (For General Use Only)
Mesh Size Rib Color Microns Wire Diameter Opening % Open Area
6 Mesh White 3360 .035 .132 62.7
10 Mesh --- 2000 .025 .075 56.3
16 Mesh Brown Red 1190 .018 .044 50.7
30 Mesh Flame Red 595 .012 .021 40.8
50 Mesh Gentian Blue 297 .009 .011 30.3
80 Mesh Zinc Yellow 177 .0055 .007 31.4
100 Mesh Traffic Green 149 .0045 .005 30.3

    Part Number Description Max PSI
    LST200-10SS 2" x 2" Female NPT (SS Head & Poly Body) with 10 Mesh Screen 300 PSI
    LST200-50SS 2" x 2" Female NPT (SS Head & Poly Body) with 50 Mesh Screen 300 PSI

    Replacement Parts for LST200
    Item Part Number Description Quantity Required
    1 LST200-B* 2" Poly Bowl 1
    2 LST200-GV 2" FKM (viton type) Gasket 1
    3 LSQ200-PL 1" Clean Out Plug 1
    4 LSQ200-RV FKM (viton type) O-Ring for Clean Out Plug 1
    5 LST204SS 4 Mesh SS Screen 1
    5 LST206SS 6 Mesh SS Screen 1
    5 LST208SS 8 Mesh SS Screen 1
    5 LST210SS 10 Mesh SS Screen 1
    5 LST216SS 16 Mesh SS Screen 1
    5 LST230SS 30 Mesh SS Screen 1
    5 LST250SS 50 Mesh SS Screen 1
    5 LST280SS 80 Mesh SS Screen 1
    5 LST2100SS 100 Mesh SS Screen 1

    NOTE: Items marked with asterisk* include parts 1, 3 and 4.

    Banjo

    Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
