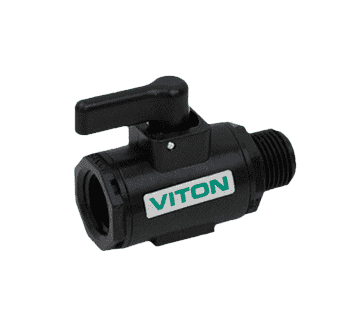

LV050100MTV Banjo Polypropylene Micro Valve - 1/2" Female NPT x 1" Male NPT - Opening Thru Ball: 15/32" - 300 PSI

LV050100MTV by Banjo | Micro Valve | 1/2" Female NPT x 1" Male NPT | Opening Thru Ball: 15/32" | 300 PSI | Polypropylene | Pack of 10

Save $124.71

$311.78

$311.78 - $311.78

$311.78

$187.07

$187.07 - $187.07

$187.07

Banjo Valves - Micro Valves - Polypropylene - Female NPT x Male NPT

Package Quantity: 10 EA

Specifications for Variant SKU: LV050100MTV Banjo \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPT, 1in Male NPT
Material(s):	Polypropylene
Seal Material(s):	PTFE

Applications:
Fluids
Features:
90° rotating handle Precision molded polypropylene is reinforced with fiberglass for additional strength. Standard FKM (viton type) seats and O-rings. Maximum operating pressure 300 PSI

Part Number	Female NPT	Male NPT	Opening Thru Ball	Max PSI
LV025MTV	1/4"	1/4"	3/8"	300 PSI
LV038MTV	3/8"	3/8"	3/8"	300 PSI
LV038050MTV	3/8"	1/2"	3/8"	300 PSI
LV038050MTLV*	3/8"	1/2"	N/A	300 PSI
LV050MTV	1/2"	1/2"	15/32"	300 PSI
LV050100MTV	1/2"	1"	15/32"	300 PSI
LV050100MTLV*	1/2"	1"	N/A	300 PSI

* With Locking Handle

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
