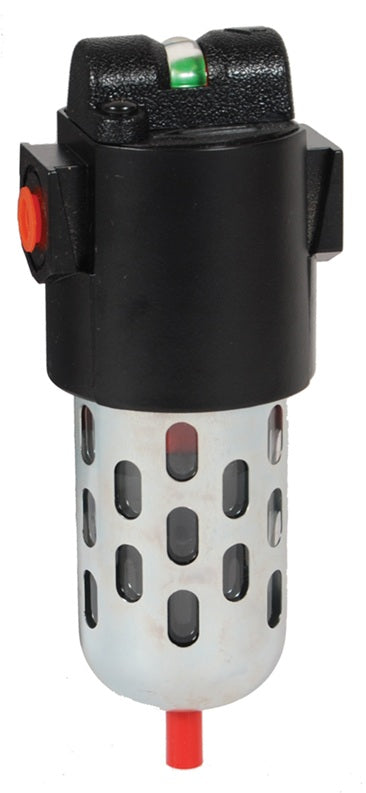

M16-03M Wilkerson by Dixon Valve | M16-Series | Compact Coalescing Filter | 3/8" Size | 44.7 SCFM | Manual Drain | 2.7 oz Compact Transparent Bowl & Guard

Save $138.67

$346.68

$346.68 - $346.68

$346.68

$208.01

$208.01 - $208.01

$208.01

Dixon Valve
Wilkerson | M16-Series | Compact Coalescing Filter

For air service only.

Removes extremely fine oil mists, oil aerosols, and microscopic particles

- 0.01 micron type C element
- 2.7 oz. bowl

Specifications for Variant SKU: M16-03M Dixon
Brand:	Wilkerson
Series:	M16-Series

Features:
0.01 micron type C element. 2.7 oz. bowl. Can be installed in modular system. Removes extremely fine oil mists, oil aerosols, and microscopic particles. A standard airline filter should be installed as a pre-filter when using a coalescing filter. Differential pressure indicator changes from green to red with pressure loss.
Specifications:
Maximum operating conditions: 150 PSIG (10.3 bar) and 32°F to 125°F (0°C to 52°C) SCFM ratings at 150 PSIG inlet pressure.
Dimensions:

With Compact Transparent Bowl and Guard		Size	Flow (SCFM)
Part Number Automatic Drain	Part Number Manual Drain	Size	Flow (SCFM)
M16-02A	M16-02M	1/4"	37.0 SCFM
M16-03A	M16-03M	3/8"	44.7 SCFM
M16-04A	M16-04M	1/2"	46.1 SCFM
