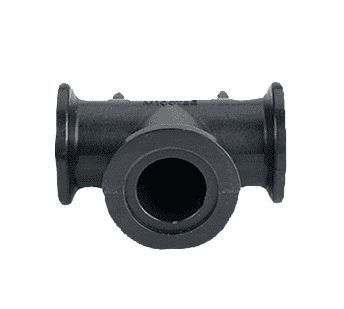

M200100TEEB Banjo Electric Manifold Assembly Flanged Mounting Bracket Tee - 2" x 1" Standard Port Flanged Tee with Mounting Bracket - 150 PSI

M200100TEEB by Banjo | Manifold Flange Connections | 2" x 1" Standard Port Flanged | Tee with Mounting Bracket | 300 PSI

Save $8.59 Save $8.59
$21.48
$21.48 - $21.48
$21.48
$12.89
$12.89 - $12.89
$12.89

Banjo Manifold Flange Connections - Manifold Fittings - Flanged Couplings - Tee
Specifications for Variant SKU: M200100TEEB Banjo
Shape (Orientation): Tee
Ends Configuration: 2in Standard Port Manifold Flange, 2in Standard Port Manifold Flange, 1in Full Port Manifold Flange, Some Ends Match
Material(s): Polypropylene
Applications:
  • Fluids
Features:
  • Positive seals.
  • Quick & easy assembly.
  • Easy On/Off hose connections.
  • 1" & 2" fittings pressure to 150 PSI at 70° F.
  • 3" fittings pressure to 125 PSI at 70° F.

Part Number End Type Max PSI
M100TEE 1" Flanged Tee 300 PSI
M101TEE 1" Flanged Tee Long 300 PSI
M200100TEEC1 2" Standard Port x 1" Manifold Tee with 3/8" Port (PSI Details in feature)
M200100TEE 2" Port x 1" Flanged Tee 300 PSI
M200TEE 2" Port Flanged Tee 200 PSI
M200100TEEB 2" x 1" Port Flanged Tee w/Mounting Bracket 300 PSI
M220100TEE 2" Full Port Flanged Tee x 1" Flanged Tee 225 PSI
M220200TEE 2" Full Port Flanged Tee x 2" Flanged Tee 300 PSI
M220TEE 2" Full Port Flanged Tee 225 PSI
M200TEEV075 2" Standard Venturi Tee with 3/4" Induct N/A
M200300TEG075 2" x 2" x 3" Manifold Tee with 3/4" Thread Port N/A
M300TEE 3" Flanged Tee 225 PSI
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
