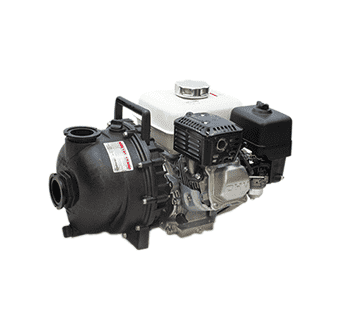

M220PH5 Banjo Polypropylene 2" Super 2 Manifold Pump with 5.5 HP Honda® Gas Engine

M220PH5 by Banjo | Centrifugal Pumps for Manifold Pump with Gas Engine | 2" Full Port with 6.5 HP Briggs & Stratton® Pro Series Engine | Polypropylene

Save $124.50 Save $124.50
$1,120.49
$1,120.49 - $1,120.49
$1,120.49
$995.99
$995.99 - $995.99
$995.99

Banjo Self-Priming Centrifugal Pumps - "Super 2" 2" Polypropylene Manifold SUPER Pumps with Gas Engines & Replacement Parts The M230 Super Pump Series have become the M220 Super Pump Series
Specifications for Variant SKU: M220PH5 Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Features:
  • High performance impeller for maximum flow! 255 GPM!
  • Precision molded construction
  • Lightweight
  • Corrosion resistant
  • Superior design
  • Low maintenance
  • EPDM Standard, FKM (viton type) available
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS
  • Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower EPDM Seal Kit Number FKM Seal Kit Number
2" Super Poly Manifold Pumps with Gas Engines
M220PH5 2" Poly Manifold Pump with 5.5 HP Honda® Gas Engine 5.5 HP 13999 13999V (Made to Order)
M220PH6 2" FP Manifold Super Pump with 6.5 HP Honda® Gas Engine 6.5 HP 13999 13999V ---
M220P6PRO 2" FP Manifold Super Pump with 6.5 HP Briggs & Stratton® Pro Series Engine 6.5 HP 13999 13999V ---
2" Poly Manifold Pumps ONLY
M220PO 2" Poly Manifold Pump Only with 3/4" Shaft & 4 Vane Impeller N/A 13999 13999V (Made to Order)

Replacement Parts for 2" SUPER Manifold Poly Pumps
Item Part Number Description
1 12703A Rear Bracket
2 13702 Volute
3 M12712 Body Assembly
Not Shown 12099 7/16"-14 x 1.25" HHCS
N/A 12000A 5 Vane Impeller Repair Kit (Items 4-8, 10, 14, 18, 23 & 12099)
N/A 12000AV FKM(viton type) Impeller Repair Kit (Items 4-8, 10, 14, 18, 22, 23 & 12099)
N/A 12999A Pump Seal/O-Ring Kit (Items 4-7, 10, 18, 23 & 12099)
N/A 12999AV FKM(viton type) Pump Seal/O-Ring Kit (Items 4-7, 10, 18, 23 & 12099)
N/A 13999 EPDM Seal Kit
N/A 13999V FKM Seal Kit
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
