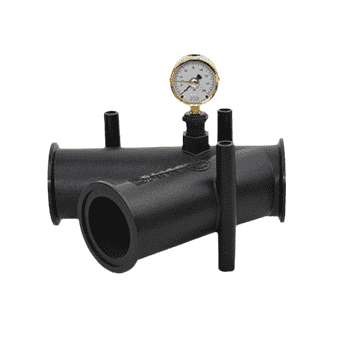

M220YG45 Banjo 2" Full Port 45 deg. Y Flanged Coupling with 3/4" Gauge Port

M220YG45 by Banjo | Manifold Flange Connections | 2" Full Port Y Flanged Coupling with 3/4" Gauge Port | 45° Elbow | 225 PSI

Save $34.71 Save $34.71
$86.78
$86.78 - $86.78
$86.78
$52.07
$52.07 - $52.07
$52.07

Banjo Manifold Flange Connections - Manifold Fittings - Flanged Couplings - 45 deg. Y
Specifications for Variant SKU: M220YG45 Banjo
Shape (Orientation): Y
Ends Configuration: 2in Full Port Manifold Flange, 2in Full Port Manifold Flange, 2in Full Port Manifold Flange, Some Ends Match
Material(s): Polypropylene
Applications:
  • Fluids
Features:
  • Positive seals.
  • Quick & easy assembly.
  • Easy On/Off hose connections.
Part Number End Type Max PSI
M200YG45 2" Standard Port 45° Y Flange 225 PSI
M220Y45 2" Full Port 45° Y Flange 300 PSI
M220YG45* 2" Full Port 45° Y Flange with 3/4" gauge port 200 PSI
M300Y45 3" Standard Port 45° Y Flange 200 PSI
M300YG45* 3" Standard Port 45° Y Flange with 3/4" gauge port 200 PSI

* Note: Gauge not included.

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
