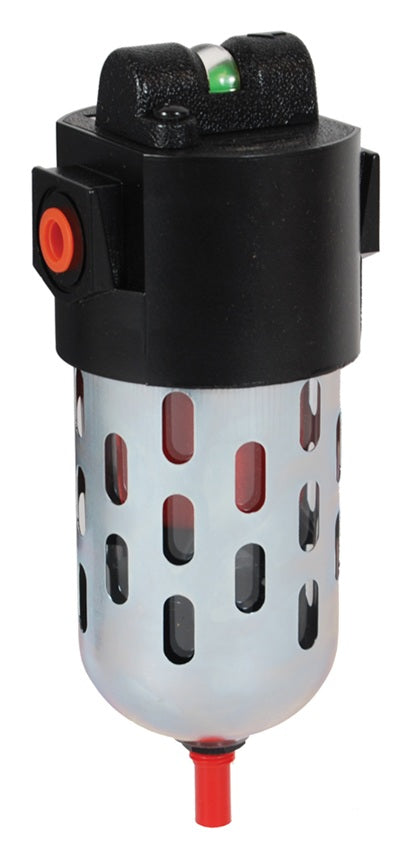

M26-04M Wilkerson by Dixon Valve | M26-Series | Standard Coalescing Filter | 1/2" Size | 79.5 SCFM | Manual Drain | 1.7 oz. Standard Transparent Bowl & Guard

Save $24.56

$290.87

$290.87 - $290.87

$290.87

$266.31

$266.31 - $266.31

$266.31

Dixon Valve
Wilkerson | M26-Series | Standard Coalescing Filter

For air service only.

- 0.01 micron type C element
- 1.72 oz. bowl

For the removal of extremely fine oil mists, oil aerosols and microscopic particles.

Quantity

Specifications for Variant SKU: M26-04M Dixon
Brand:	Wilkerson
Series:	M26-Series

Features:
0.01 micron type C element. 1.7 oz. bowl. Can be installed in modular system.
Specifications:
Maximum operating conditions: 150 PSIG (10.3 bar) and 32°F to 125°F (0°C to 52°C) SCFM ratings at 150 PSIG inlet pressure. A standard airline filter should be installed as a pre-filter when using a coalescing filter.
Dimensions:

With Standard Transparent Bowl and Guard		Size	Flow (SCFM)
Part Number Automatic Drain	Part Number Manual Drain	Size	Flow (SCFM)
M26-03A	-	3/8"	65.5 SCFM
M26-04A	M26-04M	1/2"	79.5 SCFM
