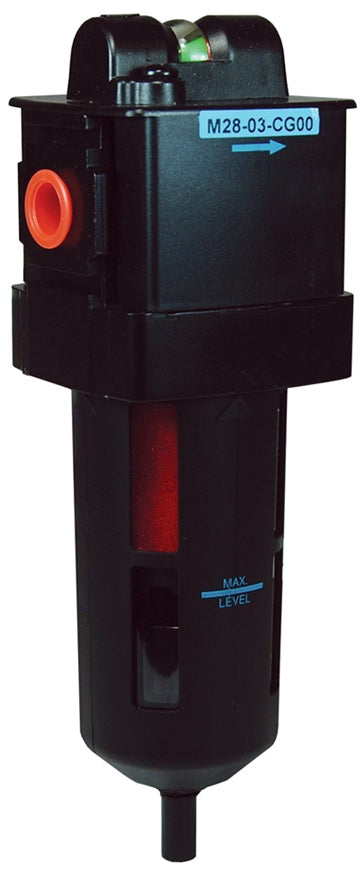

M28-04A Wilkerson by Dixon Valve | M28-Series | Standard Coalescing Filter | 1/2" Size | 42 SCFM | Automatic Drain | 2.87 oz. Compact Transparent Bowl & Guard

Save $152.47 Save $152.47
Original price $381.18
Original price $381.18 - Original price $381.18
Original price $381.18
Current price $228.71
$228.71 - $228.71
Current price $228.71

Dixon Valve
Wilkerson | M28-Series | Standard Coalescing Filter

For air service only.

2.87 oz. bowl

For the removal of extremely fine oil mists, oil aerosols, and microscopic particles.


Specifications for Variant SKU: M28-04A Dixon
Brand: Wilkerson
Series: M28-Series
Features:
  • Removes extremely fine oil mists, oil aerosols, and microscopic particles.
  • 0.5 micron type B and 0.003 micron type D elements are optional.
  • Differential pressure indicator changes from green to red with pressure loss.
  • High-efficiency removal of water, oil aerosols, and solid particulate contaminants down to 0.01 mg/m3 with minimum pressure drop.
  • Modern design and appearance.
  • Light weight.
  • High flow capacity.
  • 2.87 oz. bowl.
Specifications:
  • Maximum operating conditions: 150 PSIG (10.3 bar) and -13°F to 125°F (-25°C to 52°C)
  • SCFM ratings at 150 PSIG inlet pressure.
  • A standard airline filter should be installed as a pre-filter when using a coalescing filter.
Dimensions:
Compact Transparent Bowl and Guard Size Flow (SCFM)
Part Number
Automatic Drain
Part Number
Manual Drain
M28-03A M28-03M 3/8" 42 SCFM
M28-04A M28-04M 1/2" 42 SCFM
M28-06A M28-06M 3/4" 42 SCFM
