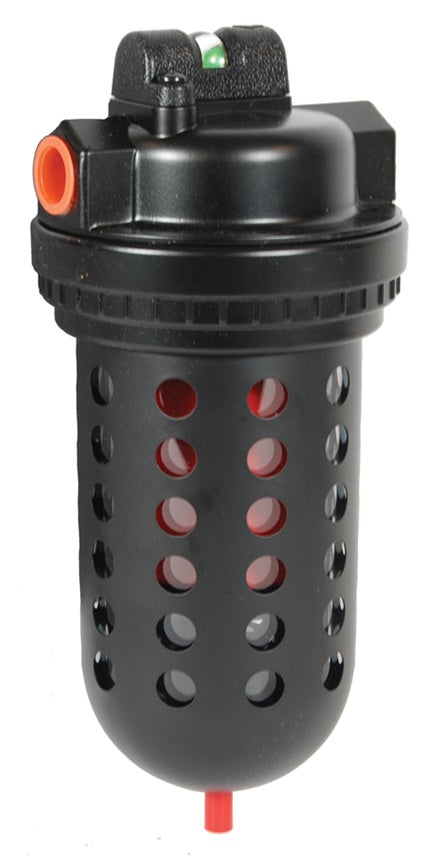

M30-08A Wilkerson by Dixon Valve | M30-Series | Jumbo Coalescing Filter | 1" Size | 203 SCFM | Automatic Drain | 2 oz. Jumbo Transparent Bowl & Guard

Save $374.37

$935.93

$935.93 - $935.93

$935.93

$561.56

$561.56 - $561.56

$561.56

Dixon Valve
Wilkerson | M30-Series | Jumbo Coalescing Filter

For air service only.

- 0.01 micron type C element
- 2 oz. bowl

For the removal of extremely fine oil mists, oil aerosols and microscopic particles.

Specifications for Variant SKU: M30-08A Dixon
Brand:	Wilkerson
Series:	M30-Series

Features:
0.01 Micron type C element 2 oz. Bowl
Specifications:
Maximum operating conditions: 150 PSIG (10.3 bar) and 32°F to 125°F (0°C to 52°C) SCFM ratings at 150 PSIG inlet pressure. A standard airline filter should be installed as a pre-filter when using a coalescing filter.
Dimensions:

Jumbo Transparent Bowl and Guard	Size	Flow (SCFM)
Part Number Automatic Drain	Size	Flow (SCFM)
M30-04A	1/2"	123 SCFM
M30-06A	3/4"	173 SCFM
M30-08A	1"	203 SCFM
