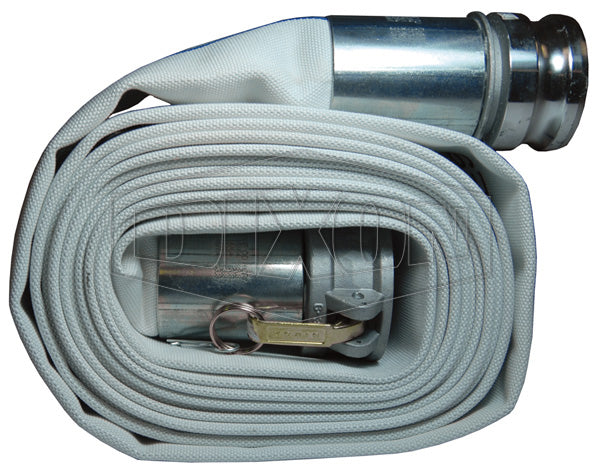

M30-50GAX Dixon Synthetic Single Jacket Mill Hose - Coupled - Fem. x Male Global Cam & Groove Couplings - 3" Hose Size - 3-3/8" Bowl Size - 50ft Length

M30-50GAX Dixon Synthetic Single Jacket Mill Hose - Coupled - Fem. x Male Global Cam & Groove Couplings - 3" Hose Size - 3-3/8" Bowl Size - 50ft Length

Save $20.59 Save $20.59
$297.96
$297.96 - $297.96
$297.96
$277.37
$277.37 - $277.37
$277.37

Dixon Fire Fittings
Synthetic Single Jacket Mill Hose - Coupled - Cam & Groove Couplings

Used in open end water discharge applications only, not intended for fire fighting service.
Specifications for Variant SKU: M30-50GAX Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 3in
Tubing Construction: PVC
Cover Construction: Polyester Textile Braid
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 3in Male Cam & Groove
Features:
  • outer construction: single jacket, all polyester
  • tube construction: black, PVC rubber
Part Number Size Bowl Working Pressure Pressure Rating Length Weight
(Lbs.)
Female x Male NPSH King Short Shank Couplings with Crimp Sleeve, Aluminum Shank with Brass Pin Lug Swivel Nut
M15-25KAS 1-1/2" 1-11/16" 75 PSI 250 PSI 25 ft 6.3200
M15-50KAS 1-1/2" 1-11/16" 75 PSI 250 PSI 50 ft 8.3800
M20-25KAS 2" 2-3/8" 75 PSI 250 PSI 25 ft 8.1200
M20-50KAS 2" 2-3/8" 75 PSI 250 PSI 50 ft 13.8000
M25-25KAS 2-1/2" 2-11/16" 50 PSI 250 PSI 25 ft 6.7800
M25-50KAS 2-1/2" 2-11/16" 50 PSI 250 PSI 50 ft 22.5000
M30-25KAS 3" 3-3/8" 50 PSI 250 PSI 25 ft 13.4000
M30-50KAS 3" 3-3/8" 50 PSI 250 PSI 50 ft 19.4800
Female x Male NST(NH) King Short Shank Couplings with Crimp Sleeve, Aluminum Shank with Brass Pin Lug Swivel Nut
M15-25KAF 1-1/2" 1-11/16" 75 PSI 250 PSI 25 ft 5.3600
M15-50KAF 1-1/2" 1-11/16" 75 PSI 250 PSI 50 ft 8.6000
M25-25KAF 2-1/2" 2-11/16" 50 PSI 250 PSI 25 ft 9.3000
M25-50KAF 2-1/2" 2-11/16" 50 PSI 250 PSI 50 ft 20.2000
Female x Male Global Cam & Groove Couplings with Crimp Sleeve
M15-25GAX 1-1/2" 1-11/16" 112 PSI 250 PSI 25 ft 6.8000
M15-50GAX 1-1/2" 1-11/16" 112 PSI 250 PSI 50 ft 11.8000
M20-25GAX 2" 2-3/8" 112 PSI 250 PSI 25 ft 9.1400
M20-50GAX 2" 2-3/8" 112 PSI 250 PSI 50 ft 14.7000
M25-25GAX 2-1/2" 2-11/16" 112 PSI 250 PSI 25 ft 9.9000
M25-50GAX 2-1/2" 2-11/16" 112 PSI 250 PSI 50 ft 21.1000
M30-25GAX 3" 3-3/8" 112 PSI 250 PSI 25 ft 15.9400
M30-50GAX 3" 3-3/8" 112 PSI 250 PSI 50 ft 26.3000
M40-25GAX 4" 4-3/8" 112 PSI 250 PSI 25 ft 24.3800
M40-50GAX 4" 4-3/8" 112 PSI 250 PSI 50 ft 42.1000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
